Vitrified-Bonded Abrasives>Cup and Dish Wheels

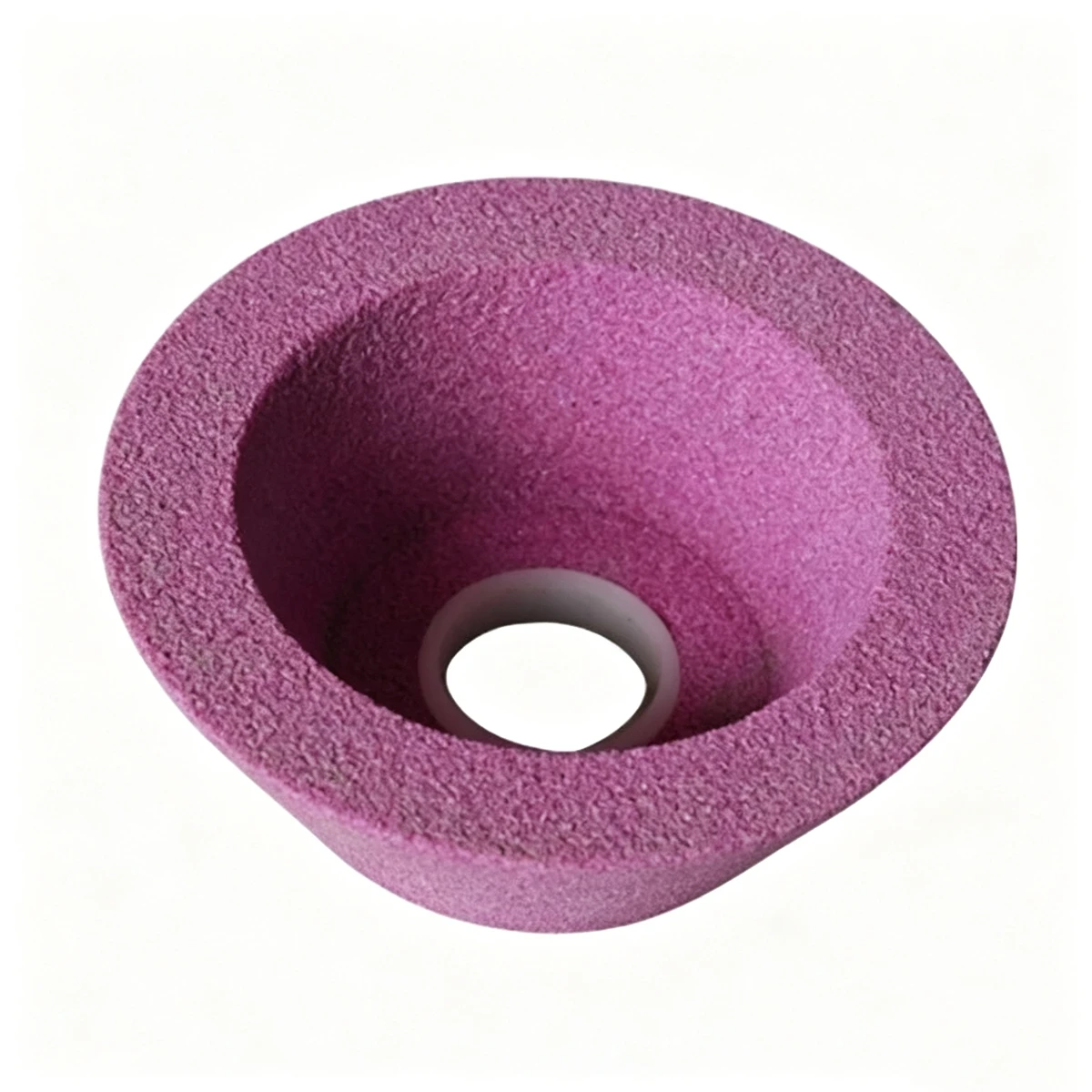

Taper Cup Grinding Wheels / Cup Wheel

Diameter: 125 mm Wall height: See specification Bore or hole size: See specification. Maximum RPM: 5730

Model:125 mm x 40 mm x 31.75 mm Ceramic Taper Cup Grinding Wheels

Brand:GC ABRASIVES

Code:68042210

Min. Order:500 Pieces

Port:Shanghai, China

Production Capacity:1, 000, 000PCS/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal

Transport Package:Standard Package suit for long sea - voyage

Description

Taper Cup Grinding Wheels / Cup Wheel

The vitrified taper cup wheels are intended for grinding flat and shaped surfaces. They operate with their faces.
Generally, they are used for surface grinding and sharpening of tools such as milling cutters, paper cutters

Dimensions [mm]
D	J	T	H	W	E	K
80	57	32	13	6	6	46
80	54	50	20	10	12	30
95	73,5	40	32	6,5	10	60
100	71	35	20	8	10	56
		40		8	10	56
				8	12	56
			31,75; 32	8	10	56
	76	40	31,75; 32	8	12	61
125	96	40	20; 32	8	10	81
150	114	40; 50	32	10	13	96
	114	40; 50	32	13	15	96
	120	50	32	37	20	60
175	60	50	32	10	15	50
200	180	100	76	16	25	140
220	210	60	32	10	20	190
225	75	76	32	15	20	60
250	200	140	76	31	30	151
