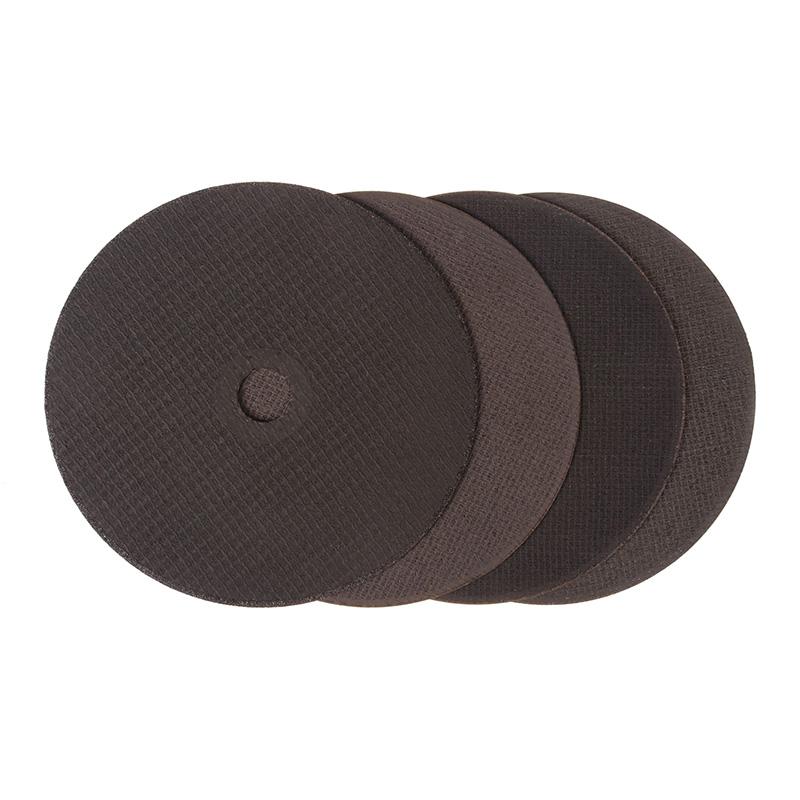

T41 Flat Cutting Wheels
Materials & Application:
Aluminium Oxide Type for Cutting high strength metal, like carbon steel, annealed iron and hard bronze, ect.
White Aluminium Oxide Type of cutting
hardened steels, alloy steels, stainless steel and high carbon steels.
Silicon carbide type for cutting iron, brass, rubber, plastic, stone, and concrete, marbon, ect.
Design:
Flat, resin bonded, fiberglass reinforcement, Aluminium Oxide, White A/O or Silicon Carbide.
Safety:

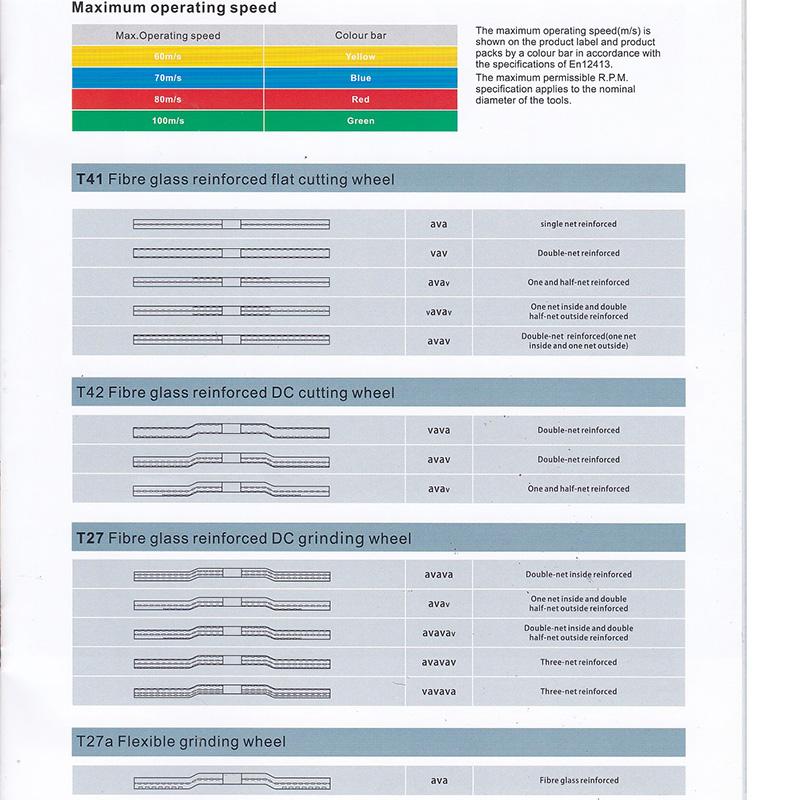

Max. Operation speed Vs=80m/s and 70m/s.
Ensure machine is guarded. Don't apply high pull down pressure. Comply with product safety pictograms.
T41 Flat Cutting Wheels
Abrasive discs produced by us according with MPA quality requirement, safety requirement and standards strictly.
PRODUCT LIST | ||||||||||
ITEM NO. | DIMENSIONS | PCS | ITEM NO. | DIMENSIONS | PCS | |||||
METRIC | BOX | CTN | METRIC | BOX | CTN | |||||
Flat Cutting Wheels For Stone | ||||||||||
11108 | 100X1.6X16 | 100 | 600 | 11426 | 180X3X16 | 25 | 100 | |||
11114 | 100X2.5X16 | 50 | 400 | 11428 | 180X3X22 | 50 | 100 | |||
11117 | 100X3X16 | 50 | 400 | 11433 | 150X2X22 | 50 | 200 | |||
11202 | 115X1.2X22 | 100 | 600 | 11503 | 200X2.5X22 | 25 | 100 | |||
11205 | 115X1.6X22 | 100 | 600 | 11507 | 280X1.8X22 | 50 | 100 | |||
11210 | 115X2.5X22 | 50 | 400 | 11509 | 230X2.5X22 | 50 | 100 | |||
11212 | 115X3X22 | 50 | 400 | 11512 | 230X2X22 | 50 | 100 | |||
11304 | 125X1.6X22 | 100 | 600 | 11515 | 230X3X22 | 50 | 100 | |||
11309 | 125X2.5X22 | 50 | 200 | 11518 | 200X3X22 | 25 | 100 | |||
11311 | 125X3x22 | 50 | 200 | 11608 | 300x3x25 | 0 | 25 | |||
11313 | 125x1.2x22 | 100 | 600 | 11610 | 350x3.5x25 | 0 | 25 | |||
11314 | 125X2X22 | 50 | 200 | 11612 | 350X3X25 | 0 | 25 | |||
11406 | 150X2.5X22 | 50 | 200 | 11624 | 300X3.5X20 | 0 | 25 | |||
11409 | 150X3X22 | 25 | 150 | 11626 | 350X3.5X20 | 0 | 25 | |||
11416 | 180X1.8X22 | 50 | 200 | 11631 | 300X3.5X25 | 0 | 25 | |||
11421 | 180X2.5X22 | 50 | 100 | 11638 | 300X3.5X22 | 0 | 25 | |||
Flat Cutting Wheels For Stainless Steel | ||||||||||
11106 | 100X1.2X16 | 100 | 600 | 11316 | 125X3X22 | 50 | 200 | |||
11109 | 100X1.6X16 | 100 | 600 | 11401 | 150X1X22 | 50 | 200 | |||
11112 | 100X1X16 | 100 | 600 | 11413 | 108X1.6X16 | 50 | 200 | |||
11118 | 105X1X9.5 | 100 | 600 | 11414 | 180X1.6X22 | 50 | 200 | |||
11121 | 75X1.6X6.4 | 100 | 600 | 11417 | 180X1.8X22 | 50 | 200 | |||
11122 | 100X1.6X22 | 100 | 600 | 11423 | 108X2X22 | 50 | 200 | |||
11203 | 115X1.2X22 | 100 | 600 | 11429 | 150X1.6X22 | 50 | 200 | |||
11206 | 115X1.6X22 | 100 | 600 | 11432 | 180X2.5X22 | 50 | 100 | |||
11208 | 115X1X22 | 100 | 600 | 11434 | 180X3X22 | 25 | 100 | |||
11214 | 115X2.5X22 | 50 | 400 | 11513 | 230X2X22 | 50 | 100 | |||
11215 | 115X3X22 | 50 | 200 | 11516 | 230X1.8X22 | 50 | 100 | |||
11302 | 125X1.2X22 | 100 | 600 | 11519 | 230X3X22 | 25 | 50 | |||
11305 | 125X1.6X22 | 100 | 600 | 11628 | 300X3.5X25 | 0 | 25 | |||
11307 | 125X1X22 | 100 | 600 | 116029 | 350X3.5X25 | 0 | 25 | |||
11315 | 125X2X22 | 50 | 200 | 11630 | 400X3.5X25 | 0 | 25 |
