One Side Tapered Grinding Wheels of Ceramic Bonded

Used on surface, cylindrical, tool and cutter grinders Form-holding vitrified toolroom wheels maximize your productivity For every ferrous and nonferrous MRO, small job shop, and production operation Better choice for medium to heavy stock removal Sharp monocrystalline aluminum oxide grain

Cylindrical Grinding is the grinding of the outside diameter of components revolving between centres or while held in a chuck. Cylindrically ground parts are more accurate in size with better finish than those turned on lathes. Sterling’s versatile range of cylindrical grinding wheels are used tor a variety of grinding operations that require size generation, fine surface finish and fast stock removal. Special wheels are available for multiple diameters and shoulder grinding with the side or the wheel where wheel gradings are adjusted for plunge grinding without any traverse. Suitable for machines like Landis, Kirloskar Landis, Churchill, Newall, WMW, Praga, HMT, Riat, Toshiba, Norton, Parishudh etc.

Abrasives Bond Type Vitrified Abrasive Material Aluminum Oxide Grade Medium Arbor Hole 1 1/4 inch Maximum RPM 3,600 Grit 60 Diameter 7 inch Width 1 inch Hardness I 7 inch × 1 inch × 1 1/4 inch 32A Toolroom Wheel Type 05 Recessed One Side 60 Grit Aluminum Oxide Type 5 - Purple Aluminum Oxide Recess 1 Sided Wheel TOOLROOM WHEEL 7 inch × 1 inch × 1 1/4 inch TY 05 Wheel Type Type 5 Thickness 1 inch Specification 32A60-IVBE Surface Grinding Wheels

Recessed Grinding Wheel, Abrasive Wheel Type Type 7, Abrasive Wheel Diameter 12 In., Thickness 2 In., Arbor Hole Size 3 In., Abrasive Material Aluminum Oxide, Abrasive Grit 46, Abrasive Wheel Hardness H, Max. RPM 2070, Series 32A, Specification 32A46-HVBE, Recess Type Two Sides, Recess Dia. 7-1/4 In., Recess Depth 1/2 In., 2nd Recess Depth 1/2 In.

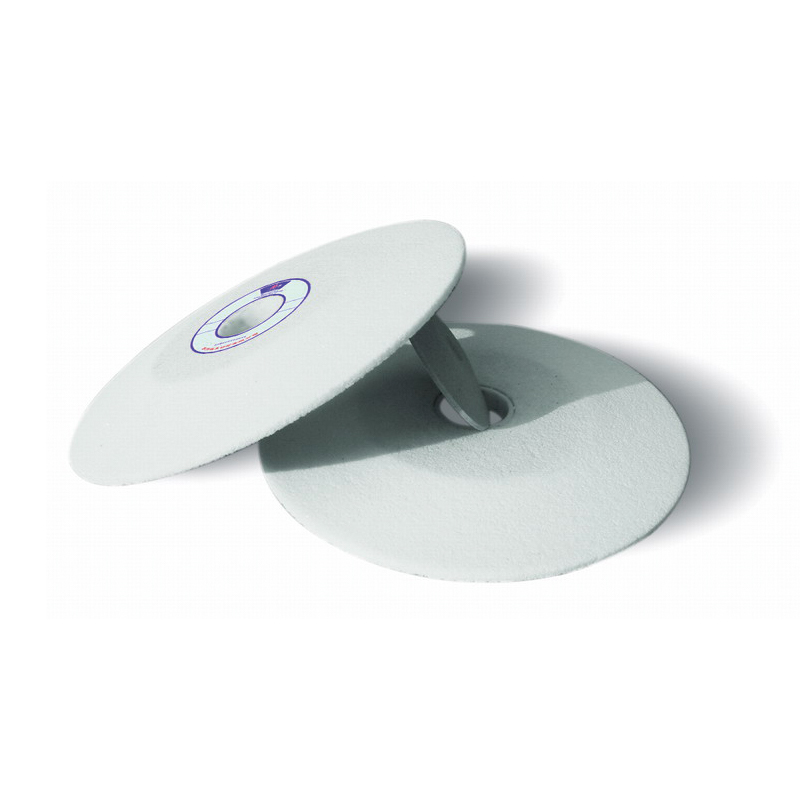

One side tapered grinding wheel also named C face grinding wheel, which is generally made by white fused alumina, pink fused alumina either ruby grains or pink, or white grains mix with Cobalt, it could be homogeneous structure to improve the cooling effect. strong cutting performance, no burn working-pieces.

Tapered double side grinding wheel is a kind of grinding tool with bevel edges made by mixing abrasive and binder at first, then pressing, drying, and roasting. Both sides of a tapered double side grinding wheel are tapered. Tapered double side grinding wheel is equivalent to a rack, so the motion of it is equivalent to a gear engaged with a fixed rack. At the time of processing, in addition to the main motion of rotation, the grinding wheel also does longitudinal straight linear motion in order to grind out the whole tooth width. The motion of it is the same as that of a dish grinding wheel.

Straight cup wheels for re-sharpening of mower blades. 150 mm(6") x 50 mm(2")  x 35 mm(1 3/8")  Rim 20mm Back 20mm 79A 46 JV. Containing a blend of premium ceramic abrasive with a microcrystalline structure allowing self-sharpening.

Type 11 flaring cup wheels mean wheels having double diameter dimensions D and J, and in addition have thickness, hole size, rim and back thickness dimensions. Grinding is always performed on rim face, W dimension. Type 11 wheels are subject to all limitations of use and mounting listed for type 6 straight sided cup wheels definition.
