Vitrified-Bonded Abrasives>Mounted Points

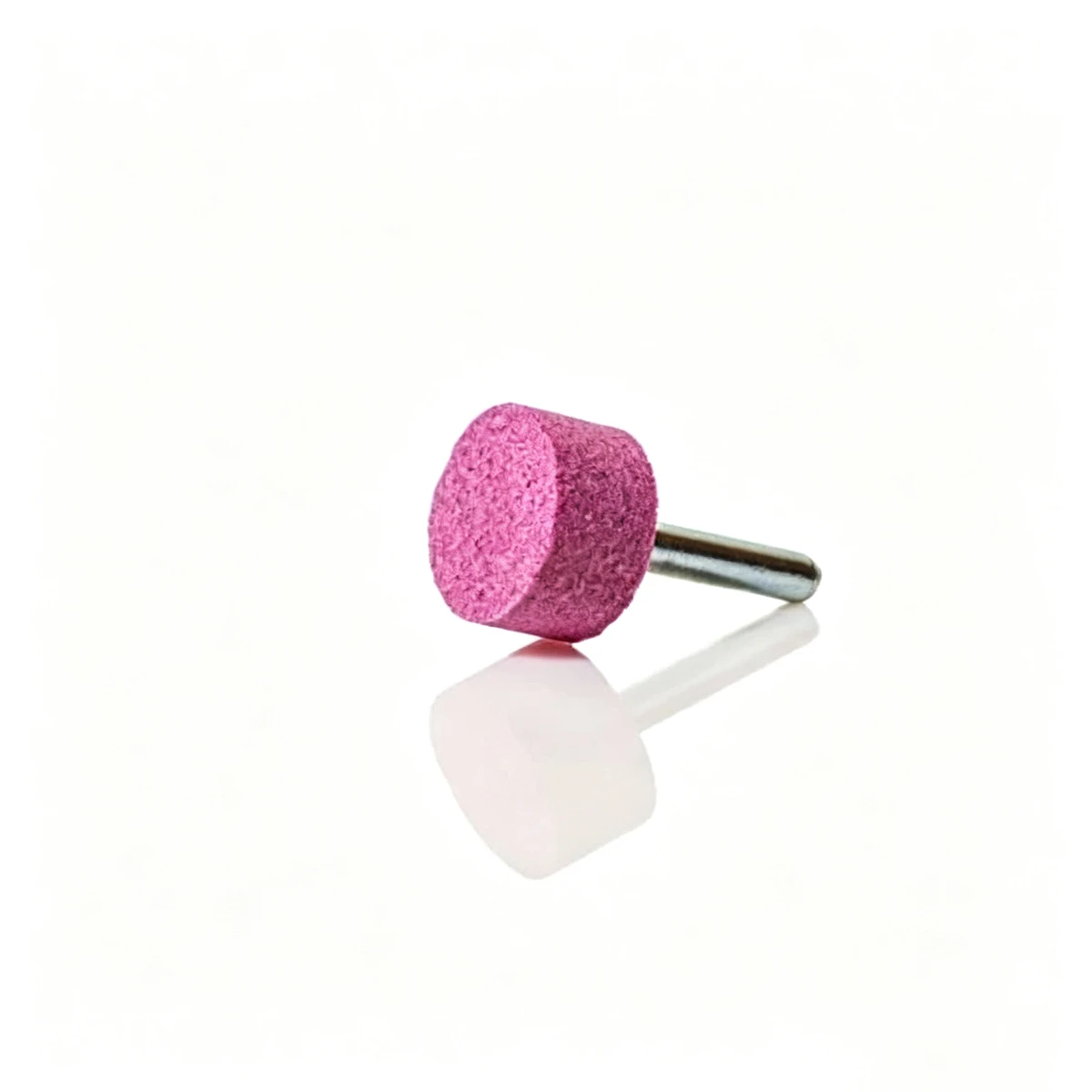

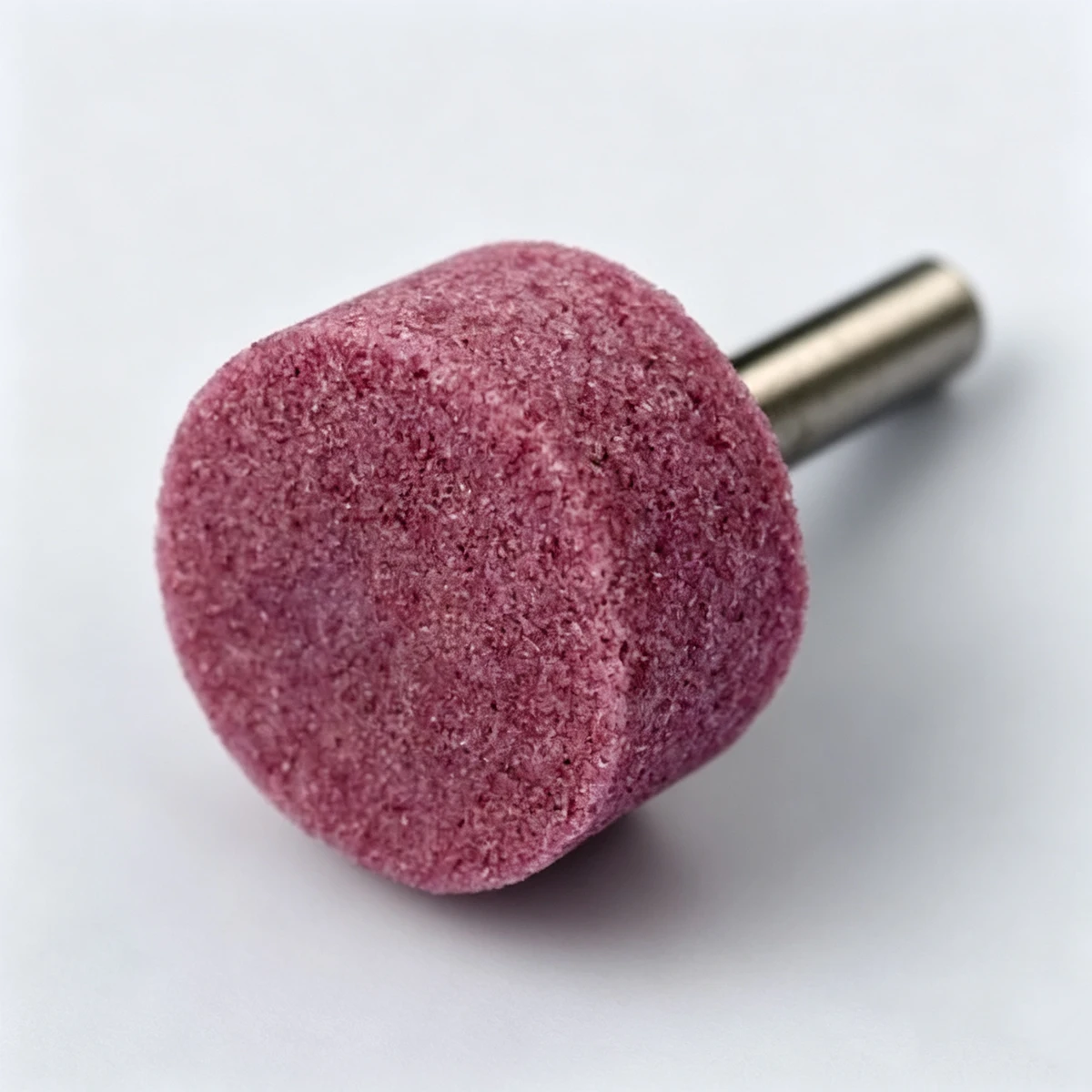

1/4" X 1-1/16" X 1/4" A15 Abrasive Mounted Point

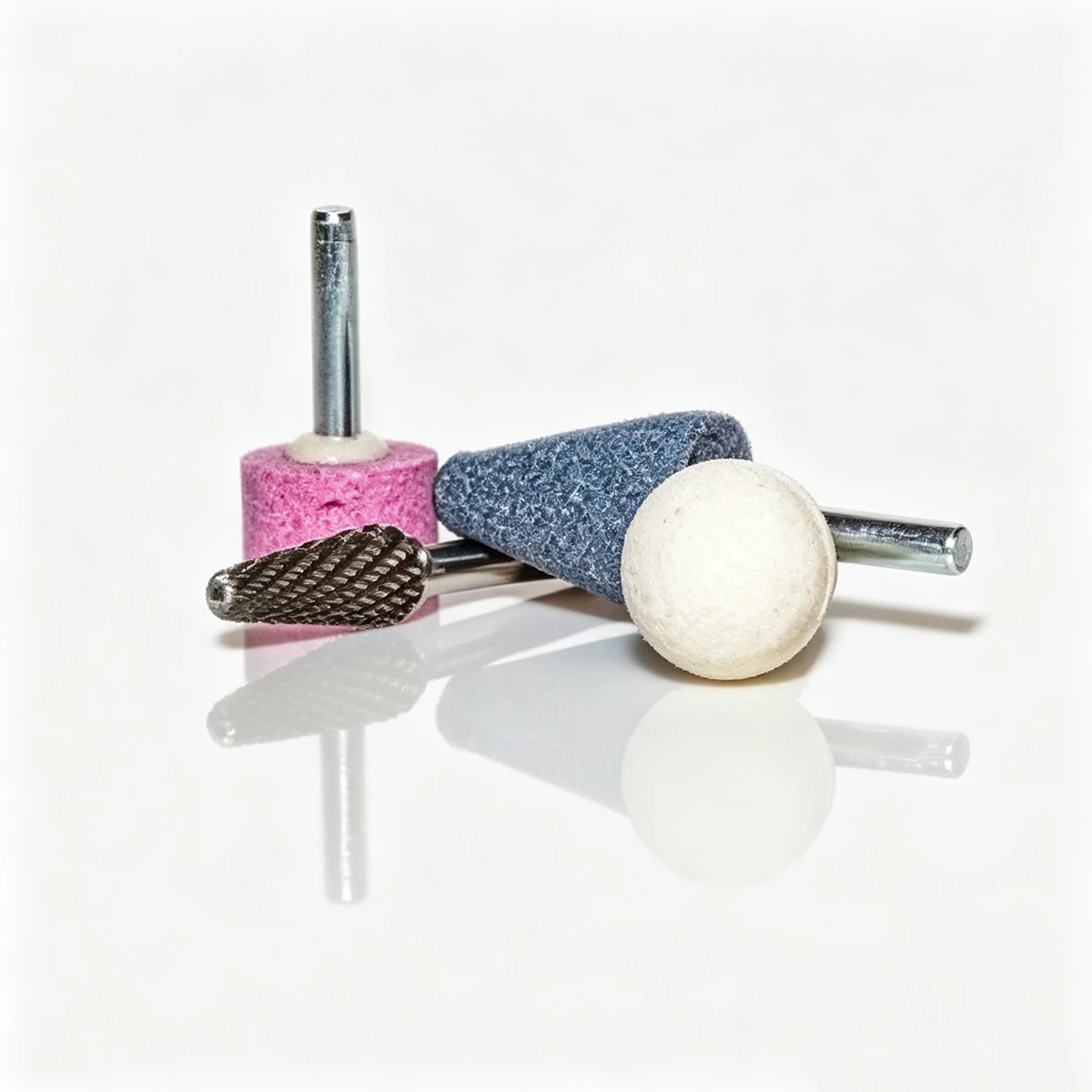

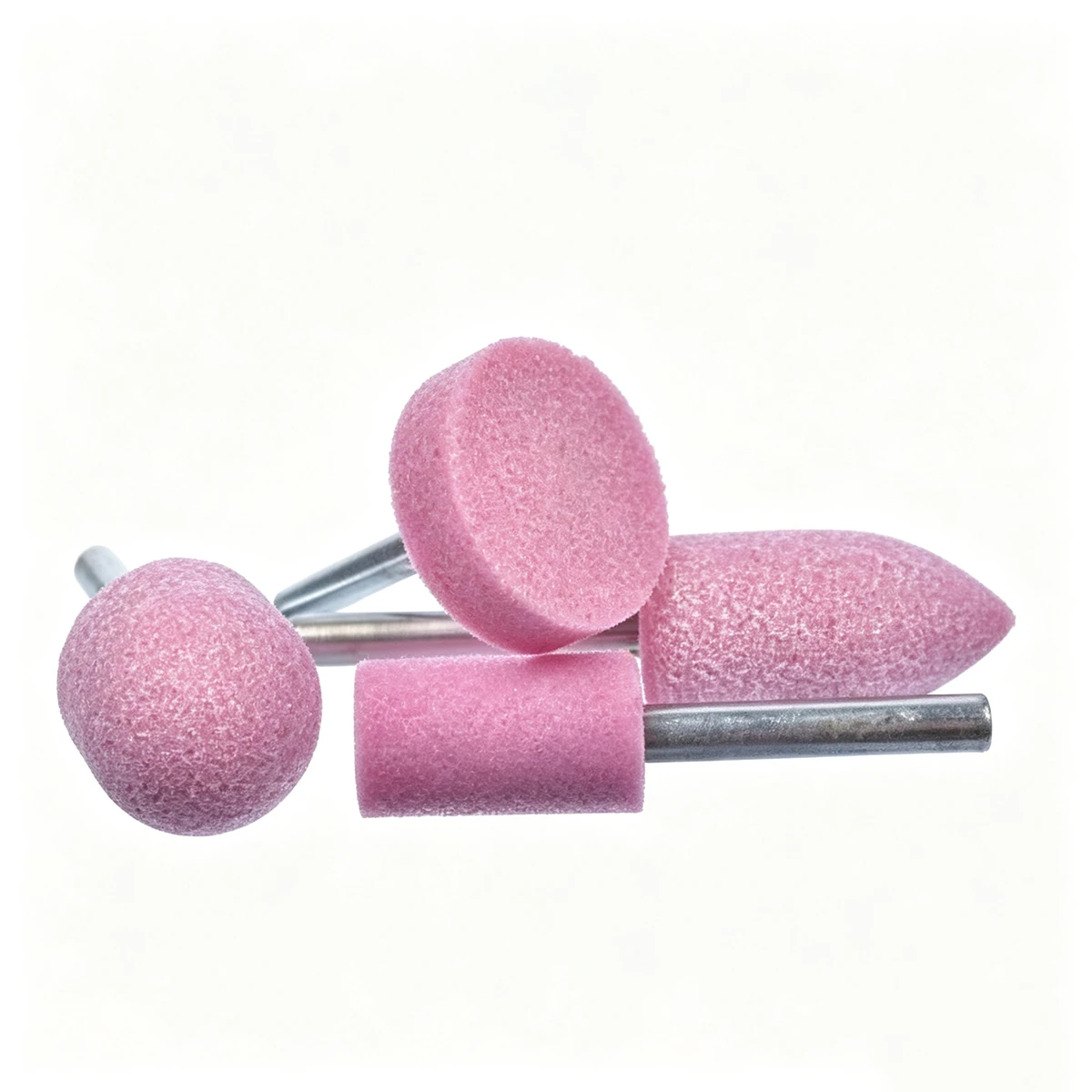

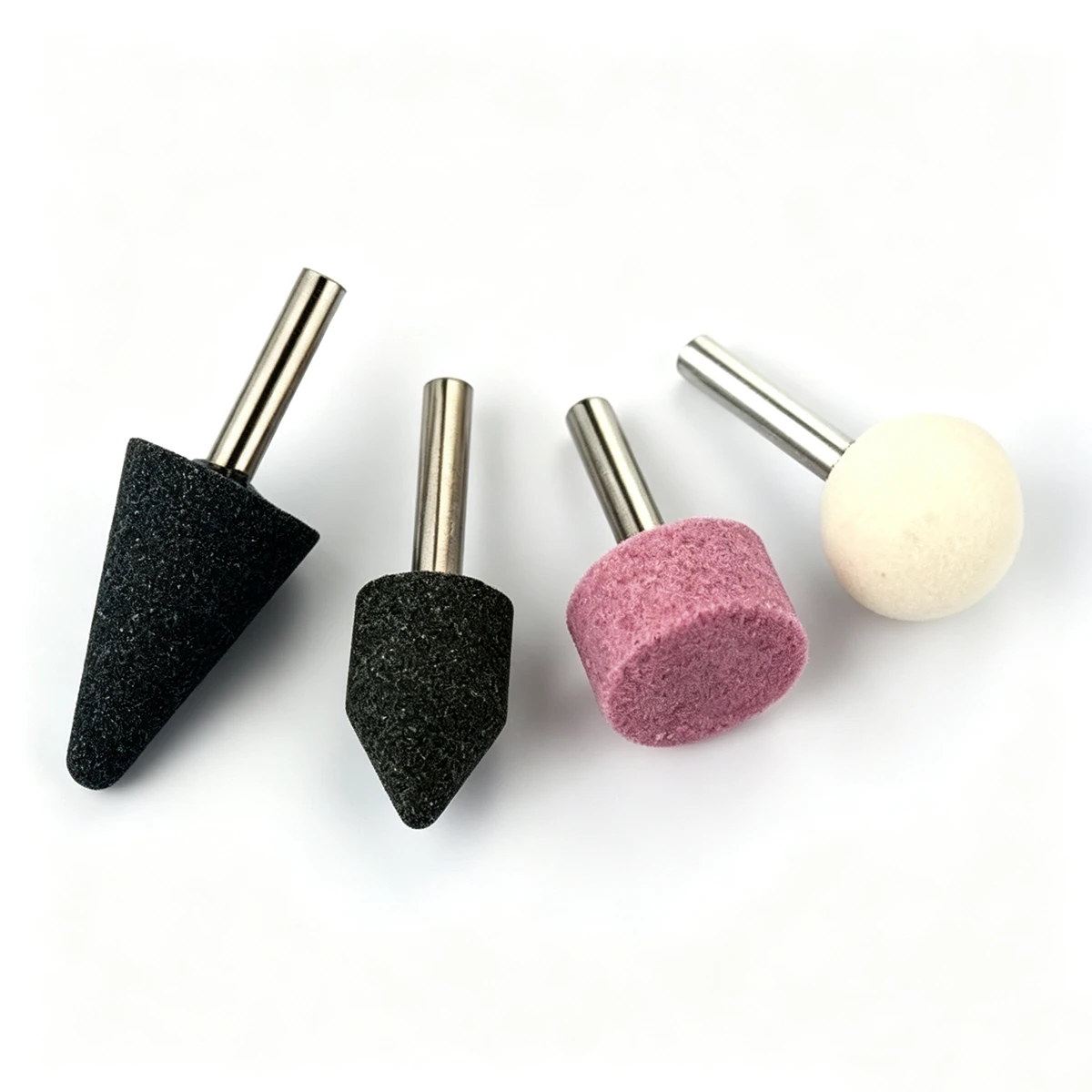

A great little set for those small grinding jobs. Made from Aluminium Oxide (80G) Set contains tree, cone, ball, cylinder and wheel Great for grinding, polising, carving etc For use in die grinders dremmels 1/4 Inch Shank

Model:1/4" X 1-1/16" X 1/4" A15 Abrasive Mounted Point

Brand:GC ABRASIVES

Code:68042210

Min. Order:1,000 Pieces

Port:Shanghai, China

Production Capacity:50, 000, 000PCS/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal

Transport Package:Standard Package suit for long sea - voyage

Description

GC Abrasives mounted points are top-notch grinding tools with a long service life and high removal rates.
For grinding, deburring and finishing on stainless steel, aluminum, and exotic materials.
Product Features
Debur and finish in one stepControlled metal removal without changing part geometryLong-lifeSmooth, chatter free grindingIdeal for deburring and polishing stainless steel, aluminum, mild steel, and exotics.Non loading on aluminum, brass, bronze, and other non-ferrous metals.
Typical Applications By Industry
Aircraft/Aerospace - Debur and finish engine componentsAutomotive - Debur, chamfer and finish machined/cast partsTool & Die - Clean, debur and finishFabrication - Corner blending, edge breaking, I.D. and O.D. debur and blend.Jewelry - Remove parting lines and finish casting

Ø 3mm shank Group B
ISO Designation	B41	B42	B43	B44	B45	B46	B47
d1 x b(mm)	16 x 16	13 x 19	6 x 8	6 x 10	5 x 8	3 x 8	3 x 4

ISO Designation	B51	B52	B53	B54	B55	B61	B62
d1 x b(mm)	11 x 19	10 x 19	8 x 16	6 x 13	3 x 6	19 x 8	13 x 10

ISO Designation	B63	B65	B68	B71	B72	B81	B82
d1 x b(mm)	6 x 5	3 x 3	6 x 2	16 x 5	13 x 4	19 x 8	13 x 6

ISO Designation	B84	B91	B92	B93	B94	B95	B96
d1 x b(mm)	8 x 5	13 x 16	6 x 6	5 x 5	4 x 2	3 x 5	3 x 6

ISO Designation	B97	B98	B101	B102	B103	B104	B105
d1 x b(mm)	3 x 10	2 x 6	16 x 18	16 x 13	16 x 5	8 x 10	6 x 6

ISO Designation	B106	B111	B112	B113	B114	B115	B121
d1 x b(mm)	3 x 2	11 x 18	10 x 13	6 x 6	6 x 10	2 x 3	13

ISO Designation	B122	B123	B124	B125	B131	B132	B135
d1 x b(mm)	10	5	3	6	13 x 13	10 x 13	6 x 13
