Vitrified-Bonded Abrasives>Mounted Points

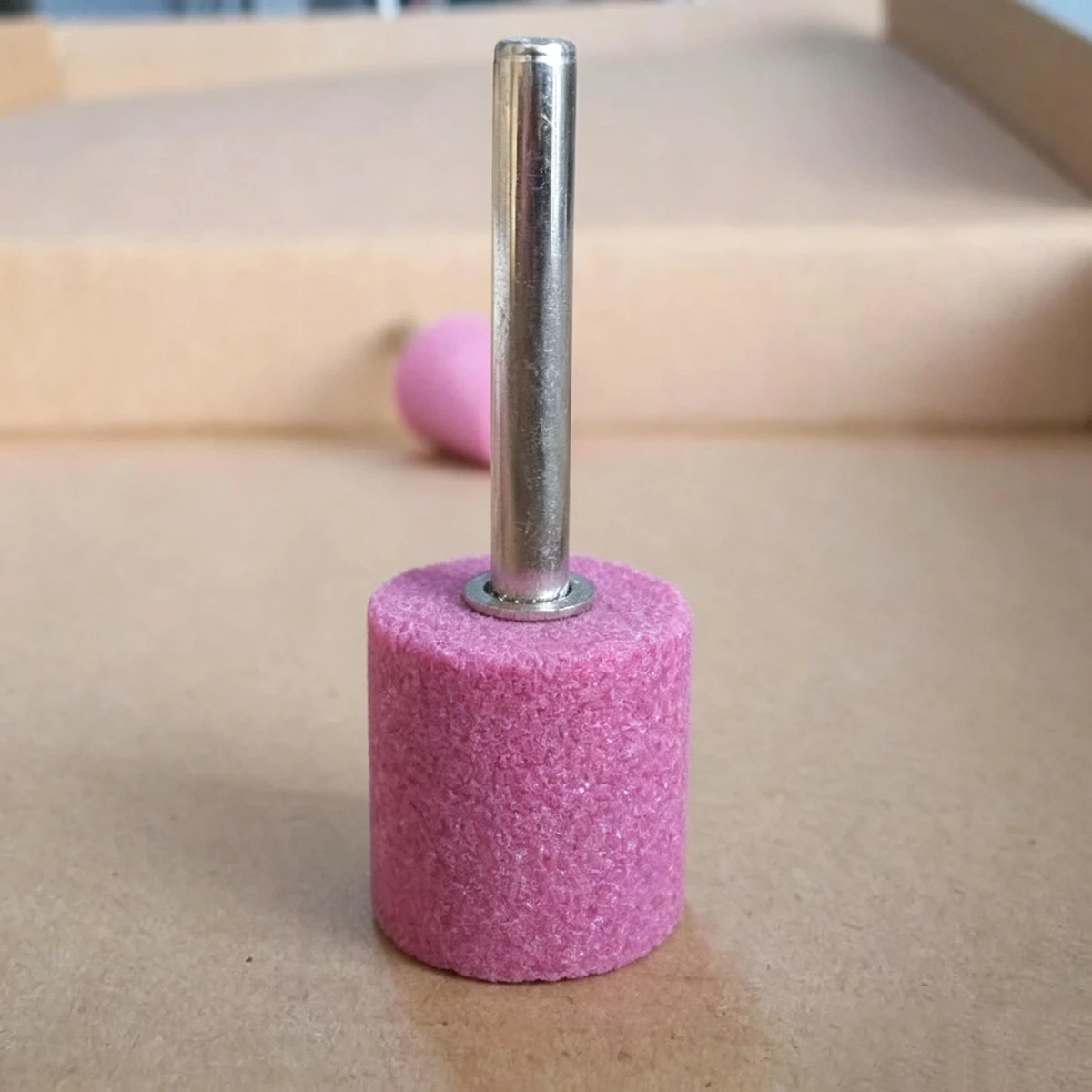

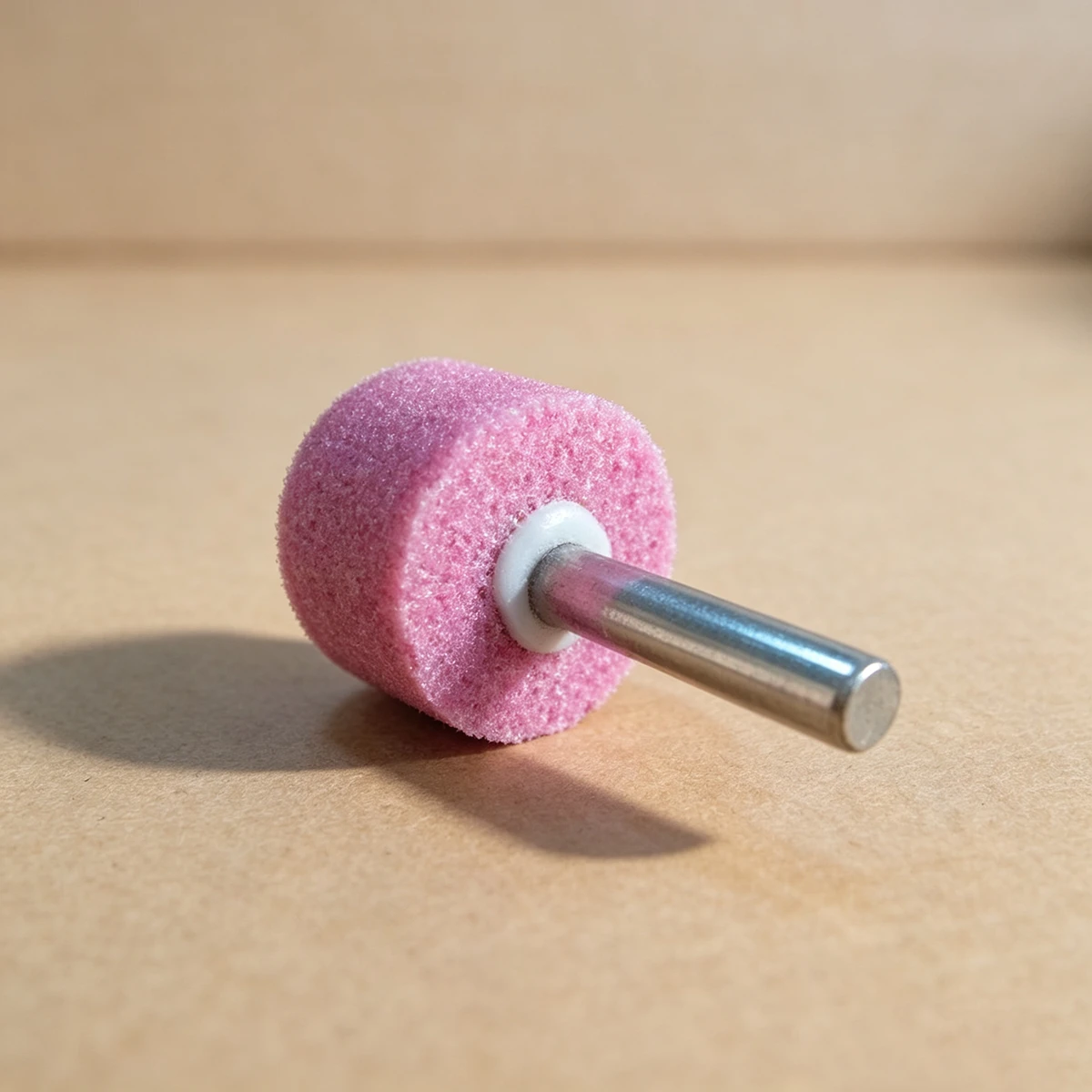

1" X 5/8" X 1/4" Shank A32 Mounted Point Abrasive

It is a good assistant for grinding and polishing of metal and non-metal materials Used for various kinds of electric grinder, grinding machine to remove burr, surface grinding, time - saving Wide adaptability: it can play an excellent role especially for stainless steel and other metals. Low noise and few dust during grinding, and will not rust and fall out like the steel brush High hardness and toughness, durabale: The hardness of chrome corundum is similar to that of white corundum, and its toughness is higher, sharper and more durable

Model:1" X 5/8" X 1/4" Shank A32 Mounted Point Abrasive

Brand:GC ABRASIVES

Code:68042210

Min. Order:1,000 Pieces

Port:Shanghai, China

Production Capacity:50, 000, 000PCS/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal

Transport Package:Standard Package suit for long sea - voyage

Description

GC Abrasives mounted points are top-notch grinding tools with a long service life and high removal rates.

For grinding, deburring and finishing on stainless steel, aluminum, and exotic materials.

Product Features
Debur and finish in one step
Controlled metal removal without changing part geometry
Long-life
Smooth, chatter free grinding
Ideal for deburring and polishing stainless steel, aluminum, mild steel, and exotics.
Non loading on aluminum, brass, bronze, and other non-ferrous metals.

Typical Applications By Industry
Aircraft/Aerospace - Debur and finish engine components
Automotive - Debur, chamfer and finish machined/cast parts
Tool & Die - Clean, debur and finish
Fabrication - Corner blending, edge breaking, I. D. And O. D. Debur and blend.
Jewelry - Remove parting lines and finish casting


Shape No.	Wheel Diameter	Wheel Thickness	1/2" Overhang	1" Overhang
A1	3/4	2-1/2	19,800	61,500
A2	1	1-1/4	32,420	26,190
A3	1	2-3/4	15,530	11,940
A4	1-1/4	1-1/4	28,550	23,150
A5	3/4	1-1/8	38,550	31,270
A6	3/4	1-1/8	38,550	29,700
A11	7/8	2	19,860	15,100
A12	11/16	1-1/4	38,050	30,790
A13	1-1/8	1-1/8	31,850	25,810
A14	11/16	7/8	43,440	35,510
A15	1/4	1-1/16	50,510	41,470
A21	1	1	34,500	26,250
A22	3/4	5/8	46,120	37,960
A23	3/4	1	39,370	30,370
A24	1/4	3/4	56,000	46,400
A25	1	1	35,620	27,370
A26	5/8	5/8	48,980	40,410
A31	1-3/8	1	27,780	23,970
A32	1	5/8	38,200	33,480
A33	1	1/2	38,200	35,460
A34	1-1/2	3/8	25,470	25,470
A35	1	3/8	38,200	38,030
A36	1-5/8	3/8	23,510	23,510
A37	1-1/4	1/4	30,560	30,560
A38	1	1	34,500	26,250
A39	3/4	3/4	44,030	35,250
A40	3/4	3/4	44,030	35,250
