Vitrified-Bonded Abrasives>Precision Grinding Wheels

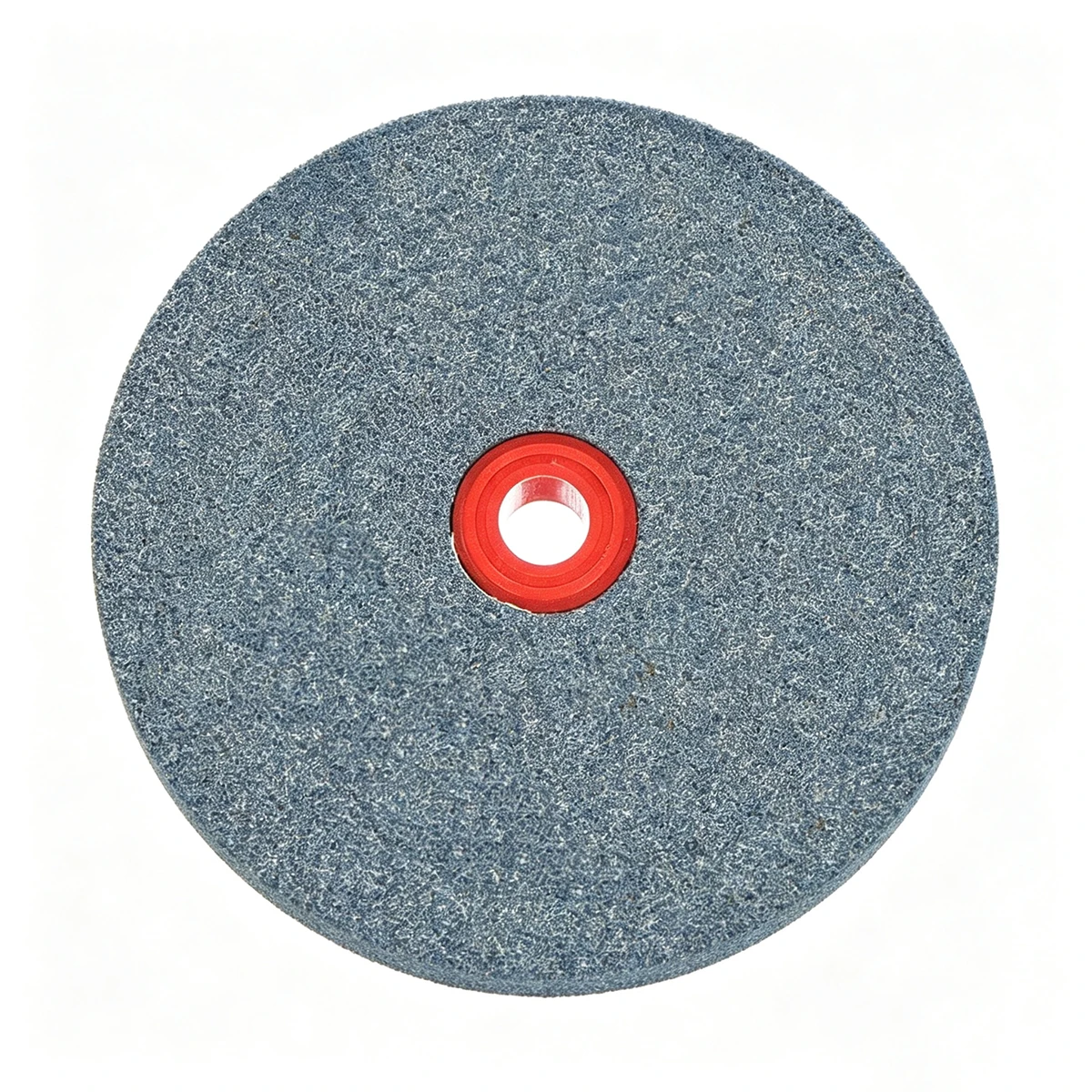

10" Type 1 Aluminum Oxide Straight Grinding Wheel, 1-1/4" Arbor, 1" Thick, 60 Grit, 2485 Max. RPM

Item: Straight Grinding Wheel Abrasive Wheel Type: Type 1 Abrasive Wheel Diameter: 10" Thickness: 1" Arbor Hole Size: 1-1/4" Abrasive Material: Aluminum Oxide Abrasive Grit: 60 Abrasive Wheel Hardness: V Max. RPM: 2485 Specification: A60-VBE Grade: Medium Bond Type: Vitrified Color: Brown Application: Bench Grinding Includes: 3/4", 7/8" and 1" Arbor Bushings

Model:10" Type 1 , 1-1/4" Arbor, 1" Thick, 60 Grit, 2485 Max. RPM

Brand:GC ABRASIVES

Code:68042210

Min. Order:500 Pieces

Port:Shanghai, China

Production Capacity:1, 000, 000PCS/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal

Transport Package:Standard Package suit for long sea - voyage

Description

Vitrified Bonded Grinding Wheel

Aluminum Oxide Grinding Wheels
Abrasive: Aluminum Oxide
Features: Suitable for sharpening process of lathe spindles on bench type surface grinding machines and also for all types of steel and iron grinding. It provides the advantages of general propose use and offers maximum 35 m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36	Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	75 x 13 x 10	•	•	•	•	35	5
	100 x 13 x 10	•	•	•	•	35	5
	100 x 16 x 20	•	•	•	•	35	5
	125 x 16 x 16	•	•	•	•	35	5
	125 x 20 x 20	•	•	•	•	35	5
	150 x 20 x 20	•	•	•	•	35	5
	150 x 25 x 20	•	•	•	•	35	5
	175 x 20 x20	•	•	•	•	35	5
	175 x 25 x 20	•	•	•	•	35	5
	200 x 20 x 20	•	•	•	•	35	5
	200 x25 x 20	•	•	•	•	35	5
	200 x 30 x 20	•	•	•	•	35	5
	200 x 32 x 20	•	•	•	•	35	5
	250 x 25 x 25	•	•	•	•	35	5
	250 x 30 x25	•	•	•	•	35	5
	250 x 32 x 25	•	•	•	•	35	5
	250 x 40 x 25	•	•	•	•	35	5
	300 x 30 x 30	•	•	•	•	35	5
	300 x 32 x 30	•	•	•	•	35	5
	300 x 40 x 30	•	•	•	•	35	5
	350 x 40 x 40	•	•	•	•	35	5
	400 x 40 x 40	•	•	•	•	35	5

SCG Diamond Sharpening Wheels
Abrasive: Silicon Carbide (Green)
Features: Suitable for sharpening process of carbide tools on bench type standard grinding machines. The product has an extended lifespan and does not cause burning and offers maximum 35m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36	Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	125 x 20 x 20	•	•	•	•	35	5
	125 x 25 x 20	•	•	•	•	35	5
	150 x 20 x 20	•	•	•	•	35	5
	175 x 20 x 20	•	•	•	•	35	5
	175 x 25 x 20	•	•	•	•	35	5
	200 x 20 x 20	•	•	•	•	35	5
	200 x 25 x 20	•	•	•	•	35	5
	200 x 32 x 20	•	•	•	•	35	5
	250 x 25 x 25	•	•	•	•	35	5
	250 x 32 x 25	•	•	•	•	35	5
	300 x 30 x 30	•	•	•	•	35	5
	300 x 32 x 30	•	•	•	•	35	5

FORM D CUP WHEELS

Abrasives: Aluminum Oxide
Features: Suitable for sharpening milling cutting bits, guides and similar cutting tools. It has a maximum 35 m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36		Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	Form D -50(50x32x13)	•		•	•	•	35	5
	Form D -75(75x40x20)	•		•	•	•	35	5
	Form D -100(100x50x20)	•		•	•	•	35	5
	Form D -125(125x63x20)	•		•	•	•	35	5
	Form D -150(150x80x20)	•		•	•	•	35	5

FORM E CONICAL CUP WHEELS

Abrasives: Aluminum Oxide
Features: Suitable for sharpening milling cutting bits, guides and similar cutting tools. It has a maximum 35 m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36		Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	Form E -50(50x25x13)	•		•	•	•	35	5
	Form E -75(75x30x20)	•		•	•	•	35	5
	Form E -100(100x35x20)	•		•	•	•	35	5
	Form E -125(125x45x20)	•		•	•	•	35	5
	Form E -150(150x50x20)	•		•	•	•	35	5
