Vitrified-Bonded Abrasives>Cup and Dish Wheels

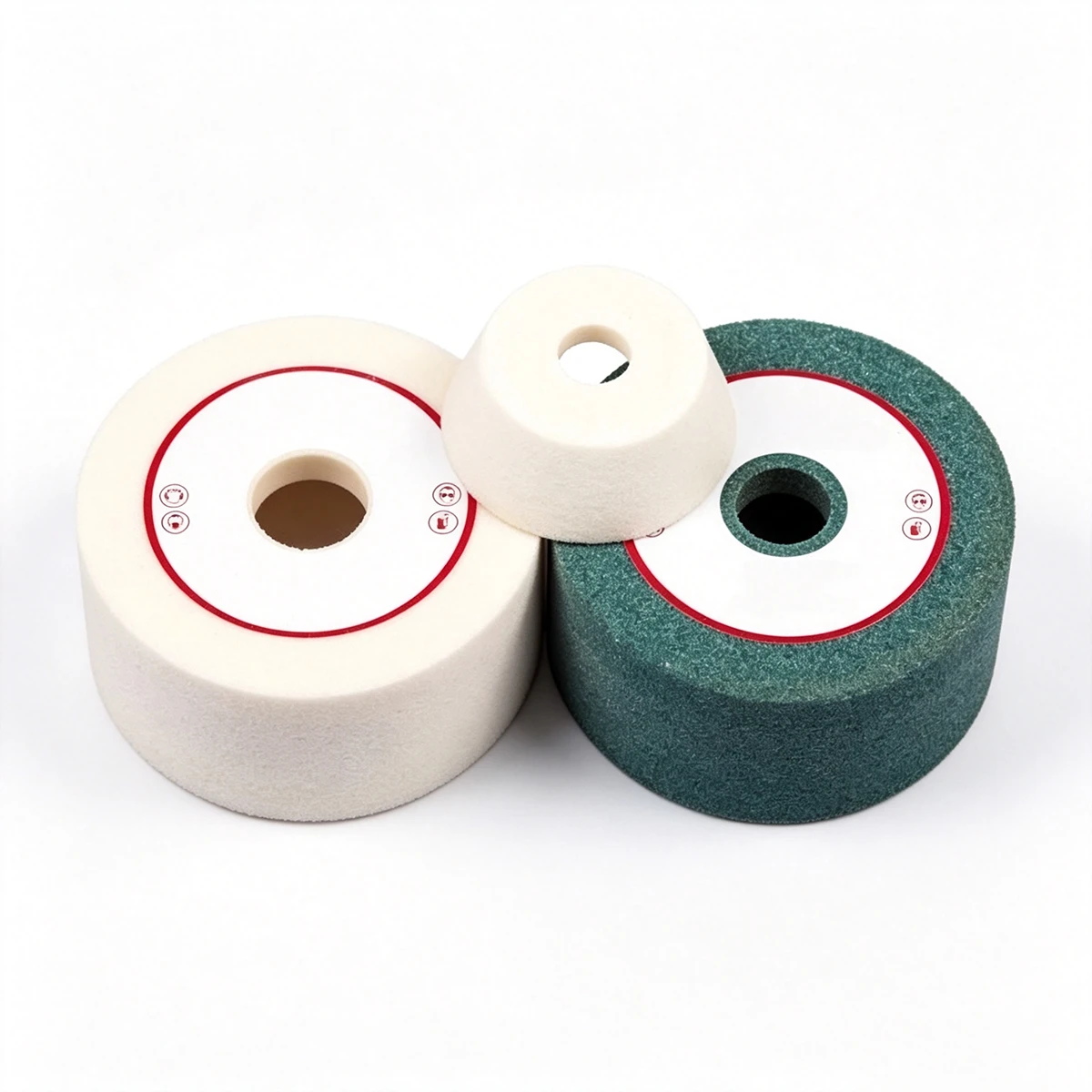

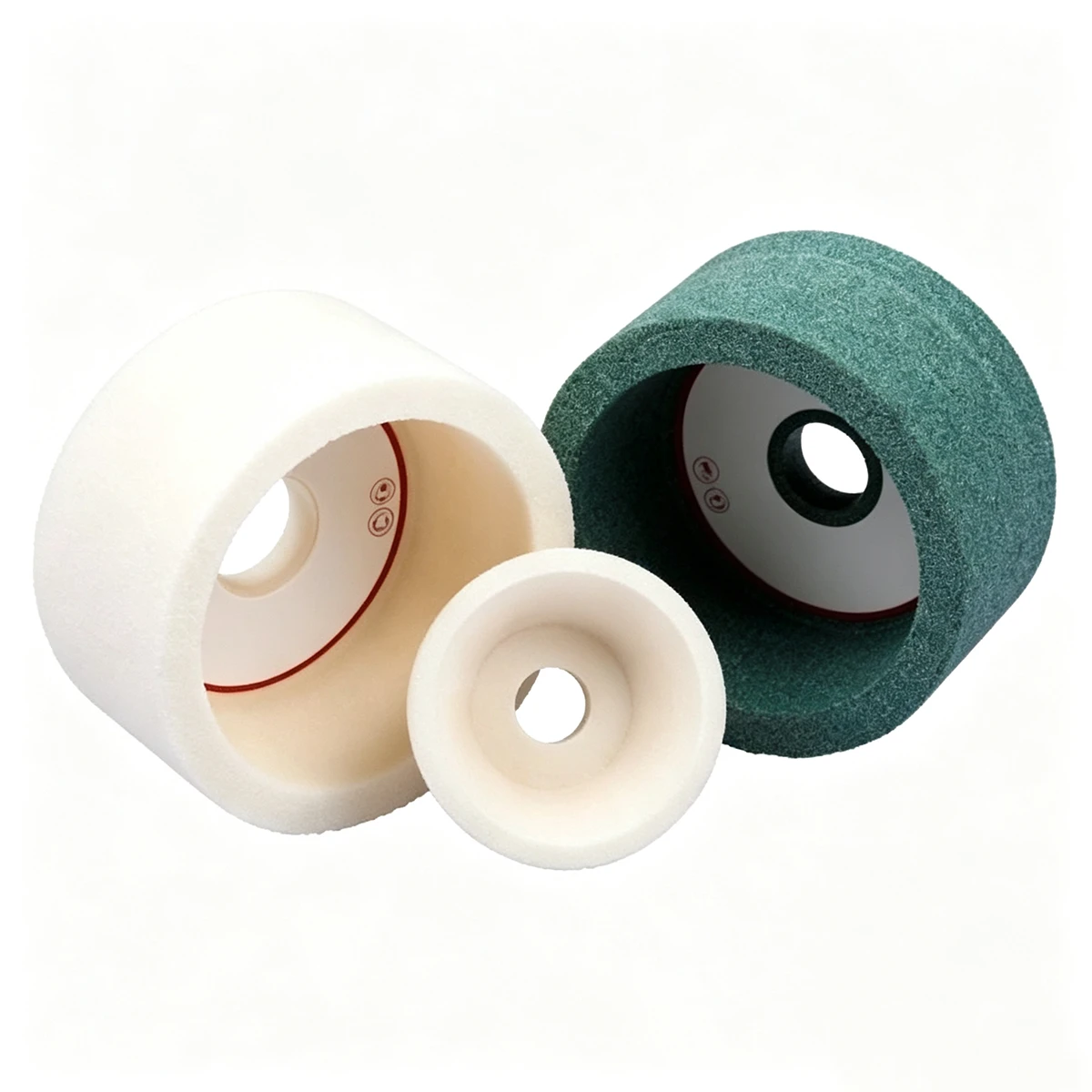

125 mm X 40 mm Straight Cup Grinding Wheels

Features and Benefits Superior grain holding properties Improving wheel form and corner holding Provides the ultimate wheel strength Lighter construction Application Information Designed for metal removal, deburring, shaping and sharpening needs

Model:125 mm X 40 mm Straight Cup Grinding Wheels

Brand:GC ABRASIVES

Code:68042210

Min. Order:500 Pieces

Port:Shanghai, China

Production Capacity:50, 000, 000PCS/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal

Transport Package:Standard Package suit for long sea - voyage

Description

Vitrified Bonded Grinding Wheel

Aluminum Oxide Grinding Wheels
Abrasive: Aluminum Oxide
Features: Suitable for sharpening process of lathe spindles on bench type surface grinding machines and also for all types of steel and iron grinding. It provides the advantages of general propose use and offers maximum 35 m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36	Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	75 x 13 x 10	•	•	•	•	35	5
	100 x 13 x 10	•	•	•	•	35	5
	100 x 16 x 20	•	•	•	•	35	5
	125 x 16 x 16	•	•	•	•	35	5
	125 x 20 x 20	•	•	•	•	35	5
	150 x 20 x 20	•	•	•	•	35	5
	150 x 25 x 20	•	•	•	•	35	5
	175 x 20 x20	•	•	•	•	35	5
	175 x 25 x 20	•	•	•	•	35	5
	200 x 20 x 20	•	•	•	•	35	5
	200 x25 x 20	•	•	•	•	35	5
	200 x 30 x 20	•	•	•	•	35	5
	200 x 32 x 20	•	•	•	•	35	5
	250 x 25 x 25	•	•	•	•	35	5
	250 x 30 x25	•	•	•	•	35	5
	250 x 32 x 25	•	•	•	•	35	5
	250 x 40 x 25	•	•	•	•	35	5
	300 x 30 x 30	•	•	•	•	35	5
	300 x 32 x 30	•	•	•	•	35	5
	300 x 40 x 30	•	•	•	•	35	5
	350 x 40 x 40	•	•	•	•	35	5
	400 x 40 x 40	•	•	•	•	35	5

SCG Diamond Sharpening Wheels
Abrasive: Silicon Carbide (Green)
Features: Suitable for sharpening process of carbide tools on bench type standard grinding machines. The product has an extended lifespan and does not cause burning and offers maximum 35m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36	Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	125 x 20 x 20	•	•	•	•	35	5
	125 x 25 x 20	•	•	•	•	35	5
	150 x 20 x 20	•	•	•	•	35	5
	175 x 20 x 20	•	•	•	•	35	5
	175 x 25 x 20	•	•	•	•	35	5
	200 x 20 x 20	•	•	•	•	35	5
	200 x 25 x 20	•	•	•	•	35	5
	200 x 32 x 20	•	•	•	•	35	5
	250 x 25 x 25	•	•	•	•	35	5
	250 x 32 x 25	•	•	•	•	35	5
	300 x 30 x 30	•	•	•	•	35	5
	300 x 32 x 30	•	•	•	•	35	5

FORM D CUP WHEELS

Abrasives: Aluminum Oxide
Features: Suitable for sharpening milling cutting bits, guides and similar cutting tools. It has a maximum 35 m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36		Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	Form D -50(50x32x13)	•		•	•	•	35	5
	Form D -75(75x40x20)	•		•	•	•	35	5
	Form D -100(100x50x20)	•		•	•	•	35	5
	Form D -125(125x63x20)	•		•	•	•	35	5
	Form D -150(150x80x20)	•		•	•	•	35	5

FORM E CONICAL CUP WHEELS

Abrasives: Aluminum Oxide
Features: Suitable for sharpening milling cutting bits, guides and similar cutting tools. It has a maximum 35 m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36		Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	Form E -50(50x25x13)	•		•	•	•	35	5
	Form E -75(75x30x20)	•		•	•	•	35	5
	Form E -100(100x35x20)	•		•	•	•	35	5
	Form E -125(125x45x20)	•		•	•	•	35	5
	Form E -150(150x50x20)	•		•	•	•	35	5
