Vitrified-Bonded Abrasives>Precision Grinding Wheels

125 X 19 X 12.7 Grinding Wheel for Straight Grinder 36P

The Carbide grinding disc is suitable for use on hard materials and impresses with a long service life, high dimensional stability and high grinding performance. The straight grinding disc can be used for deburring, sharpening and for edge processing (chamfering, rounding) of carbide tools. Picture is for Reference only

Model:125 X 19 X 12.7 Grinding Wheel for Straight Grinder 36P

Brand:GC ABRASIVES

Code:68042210

Min. Order:500 Pieces

Port:Shanghai, China

Production Capacity:50, 000, 000PCS/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal

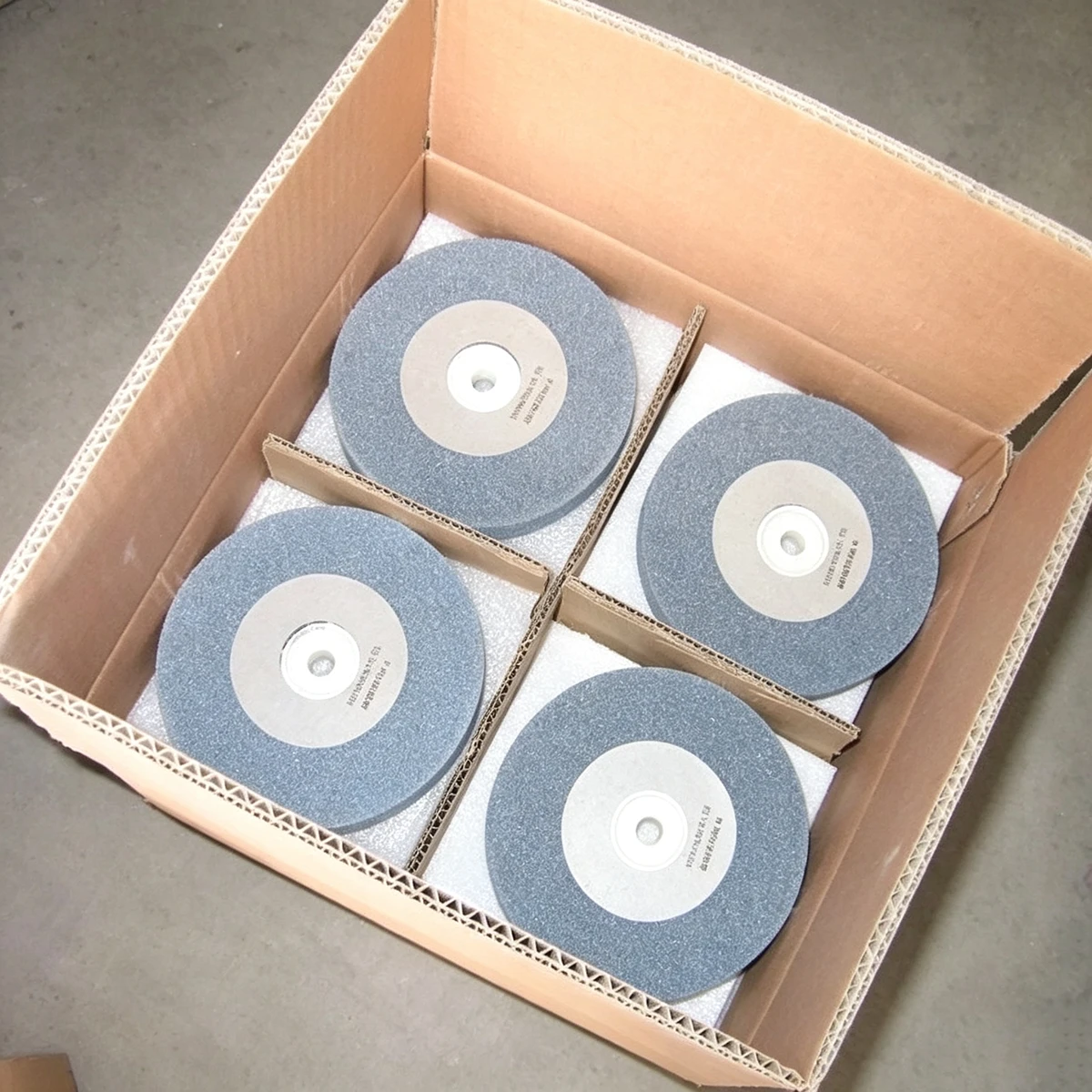

Transport Package:Standard Package suit for long sea - voyage

Description

Vitrified Bonded Grinding Wheel

Aluminum Oxide Grinding Wheels
Abrasive: Aluminum Oxide
Features: Suitable for sharpening process of lathe spindles on bench type surface grinding machines and also for all types of steel and iron grinding. It provides the advantages of general propose use and offers maximum 35 m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36	Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	75 x 13 x 10	•	•	•	•	35	5
	100 x 13 x 10	•	•	•	•	35	5
	100 x 16 x 20	•	•	•	•	35	5
	125 x 16 x 16	•	•	•	•	35	5
	125 x 20 x 20	•	•	•	•	35	5
	150 x 20 x 20	•	•	•	•	35	5
	150 x 25 x 20	•	•	•	•	35	5
	175 x 20 x20	•	•	•	•	35	5
	175 x 25 x 20	•	•	•	•	35	5
	200 x 20 x 20	•	•	•	•	35	5
	200 x25 x 20	•	•	•	•	35	5
	200 x 30 x 20	•	•	•	•	35	5
	200 x 32 x 20	•	•	•	•	35	5
	250 x 25 x 25	•	•	•	•	35	5
	250 x 30 x25	•	•	•	•	35	5
	250 x 32 x 25	•	•	•	•	35	5
	250 x 40 x 25	•	•	•	•	35	5
	300 x 30 x 30	•	•	•	•	35	5
	300 x 32 x 30	•	•	•	•	35	5
	300 x 40 x 30	•	•	•	•	35	5
	350 x 40 x 40	•	•	•	•	35	5
	400 x 40 x 40	•	•	•	•	35	5

SCG Diamond Sharpening Wheels
Abrasive: Silicon Carbide (Green)
Features: Suitable for sharpening process of carbide tools on bench type standard grinding machines. The product has an extended lifespan and does not cause burning and offers maximum 35m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36	Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	125 x 20 x 20	•	•	•	•	35	5
	125 x 25 x 20	•	•	•	•	35	5
	150 x 20 x 20	•	•	•	•	35	5
	175 x 20 x 20	•	•	•	•	35	5
	175 x 25 x 20	•	•	•	•	35	5
	200 x 20 x 20	•	•	•	•	35	5
	200 x 25 x 20	•	•	•	•	35	5
	200 x 32 x 20	•	•	•	•	35	5
	250 x 25 x 25	•	•	•	•	35	5
	250 x 32 x 25	•	•	•	•	35	5
	300 x 30 x 30	•	•	•	•	35	5
	300 x 32 x 30	•	•	•	•	35	5

FORM D CUP WHEELS

Abrasives: Aluminum Oxide
Features: Suitable for sharpening milling cutting bits, guides and similar cutting tools. It has a maximum 35 m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36		Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	Form D -50(50x32x13)	•		•	•	•	35	5
	Form D -75(75x40x20)	•		•	•	•	35	5
	Form D -100(100x50x20)	•		•	•	•	35	5
	Form D -125(125x63x20)	•		•	•	•	35	5
	Form D -150(150x80x20)	•		•	•	•	35	5

FORM E CONICAL CUP WHEELS

Abrasives: Aluminum Oxide
Features: Suitable for sharpening milling cutting bits, guides and similar cutting tools. It has a maximum 35 m/s operating speed.

SKU#	Dimension mm	Grit #24	Grit #36		Grit #46	Grit #60	Max. Speed m/s	Qty per pack	Qty per Carton
	Form E -50(50x25x13)	•		•	•	•	35	5
	Form E -75(75x30x20)	•		•	•	•	35	5
	Form E -100(100x35x20)	•		•	•	•	35	5
	Form E -125(125x45x20)	•		•	•	•	35	5
	Form E -150(150x50x20)	•		•	•	•	35	5
