Vitrified-Bonded Abrasives>Precision Grinding Wheels

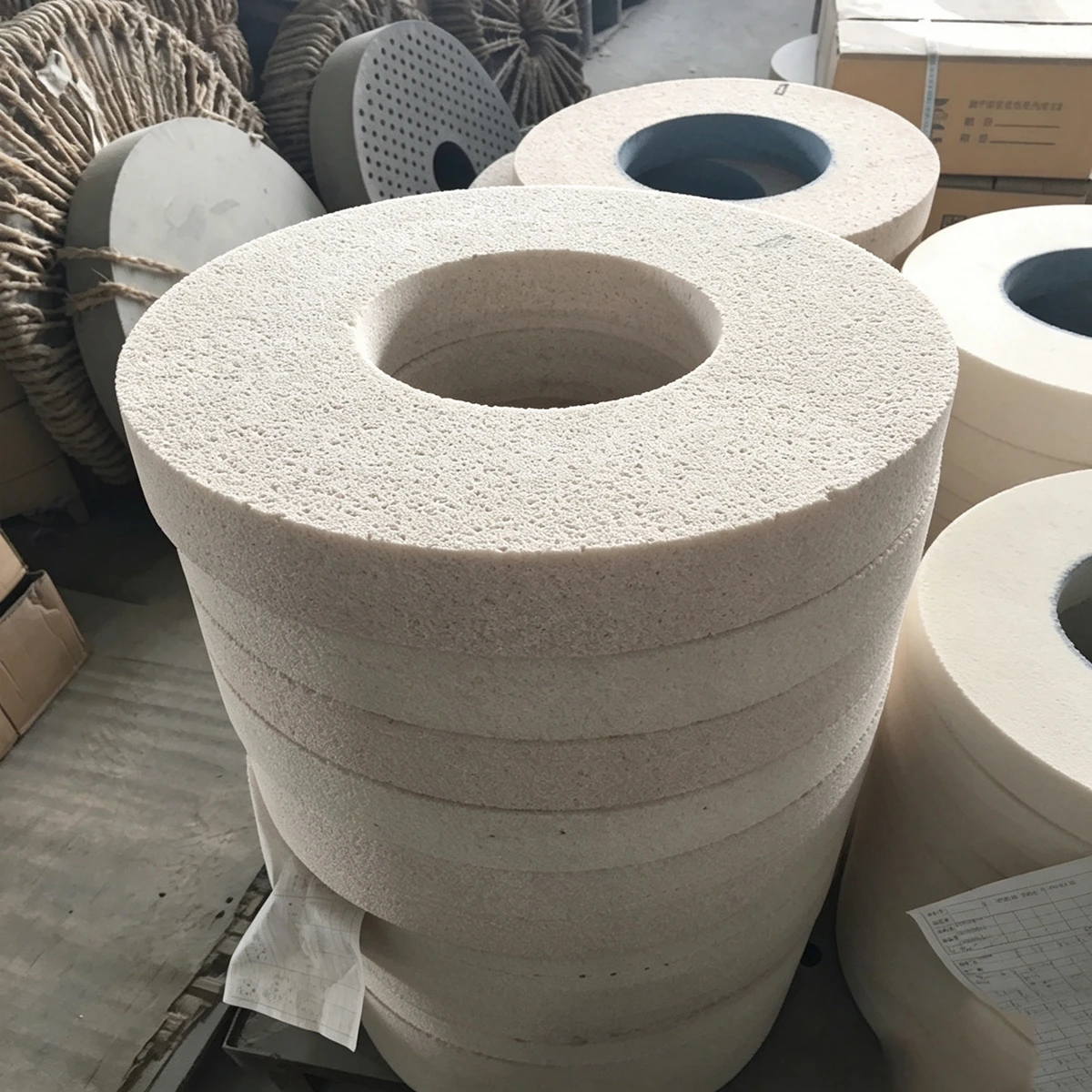

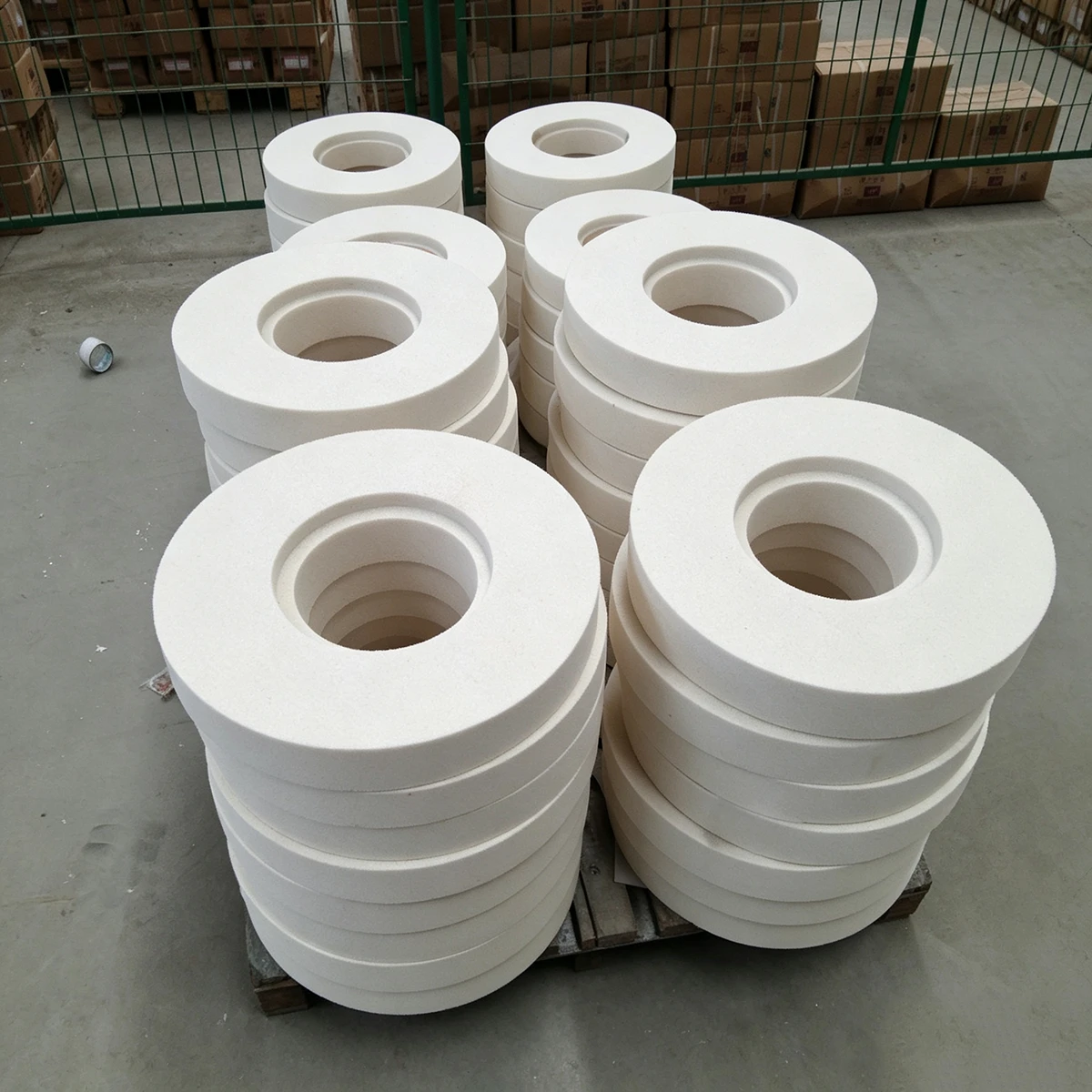

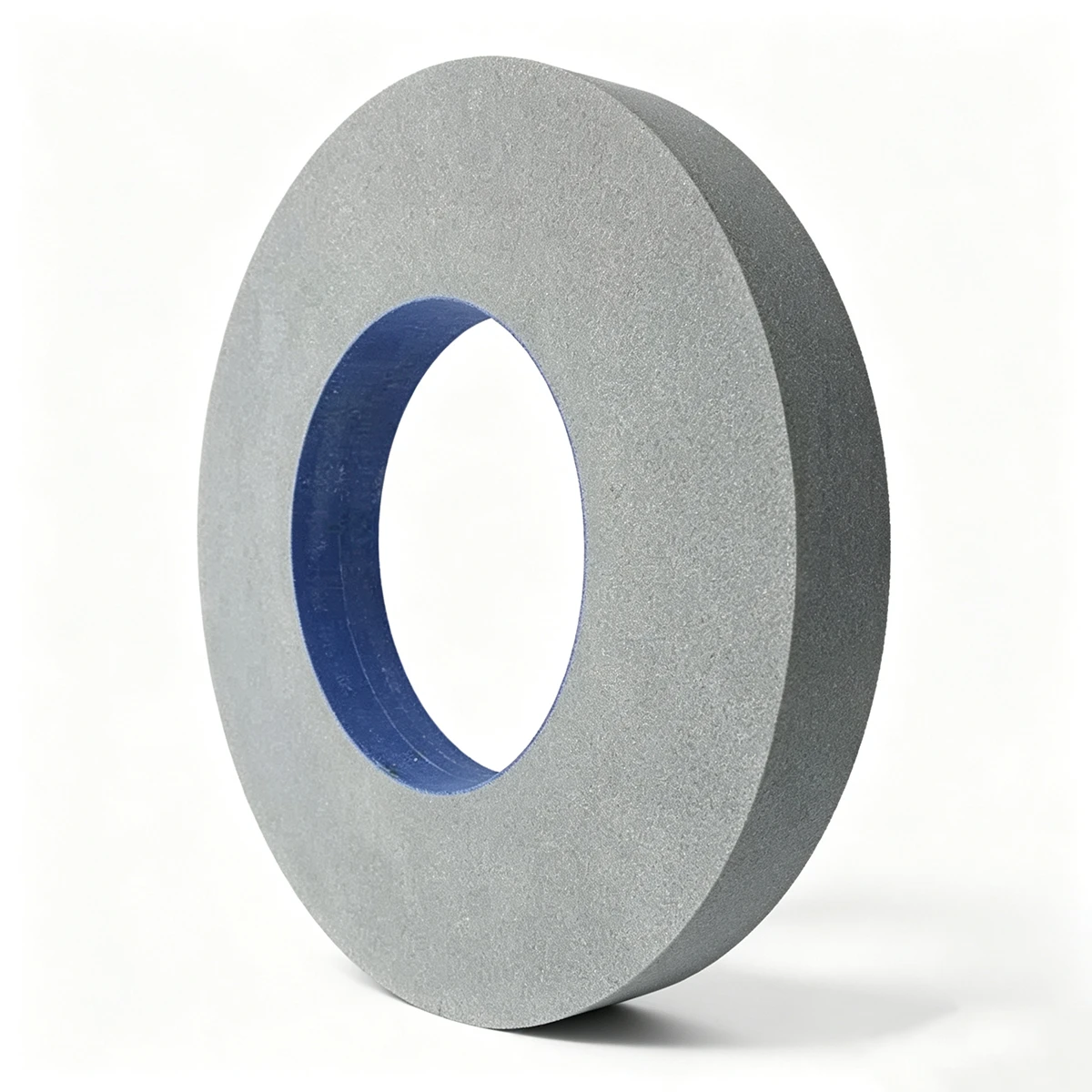

20" Diam x 8" Hole x 1" Wide Centerless & Cylindrical Grinding Wheel
Model:20" Diam x 8" Hole x 1" Wide Centerless & Cylindrical Grinding Wheel
Brand:GC ABRASIVES
Code:68042210
Min. Order:1,000 Pieces
Port:Shanghai, China
Production Capacity:1, 000, 000PCS/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal
Transport Package:Standard Package suit for long sea - voyage
Description
Cylinder Wheels
This product can be used for surface grinding machine. It is suitable for surface grinding of various industries. According to the material properties, surface quality and geometric precision of the workpiece, the matching grinding wheel can be chosen to the performance.
Type 2 | ||
Dimensions [mm] | ||
D | T | W |
100 | 80 | 10 |
150 | 80 | 20 |
200 | 100 | 20 |
200 | 60 | 25 |
200 | 80 | 24 |
200 | 90 | 20 |
250 | 100 | 50 |
250 | 90 | 25 |
300 | 75 | 50 |
350 | 70 | 40 |
Other dimensions are available on individual request.
Remark:
It is necessary to determine the centring system, i.e.:
in relation to the outer diameter
in relation to the hole diameter,
which implies the dimensional tolerances.
