Vitrified-Bonded Abrasives>Mounted Points

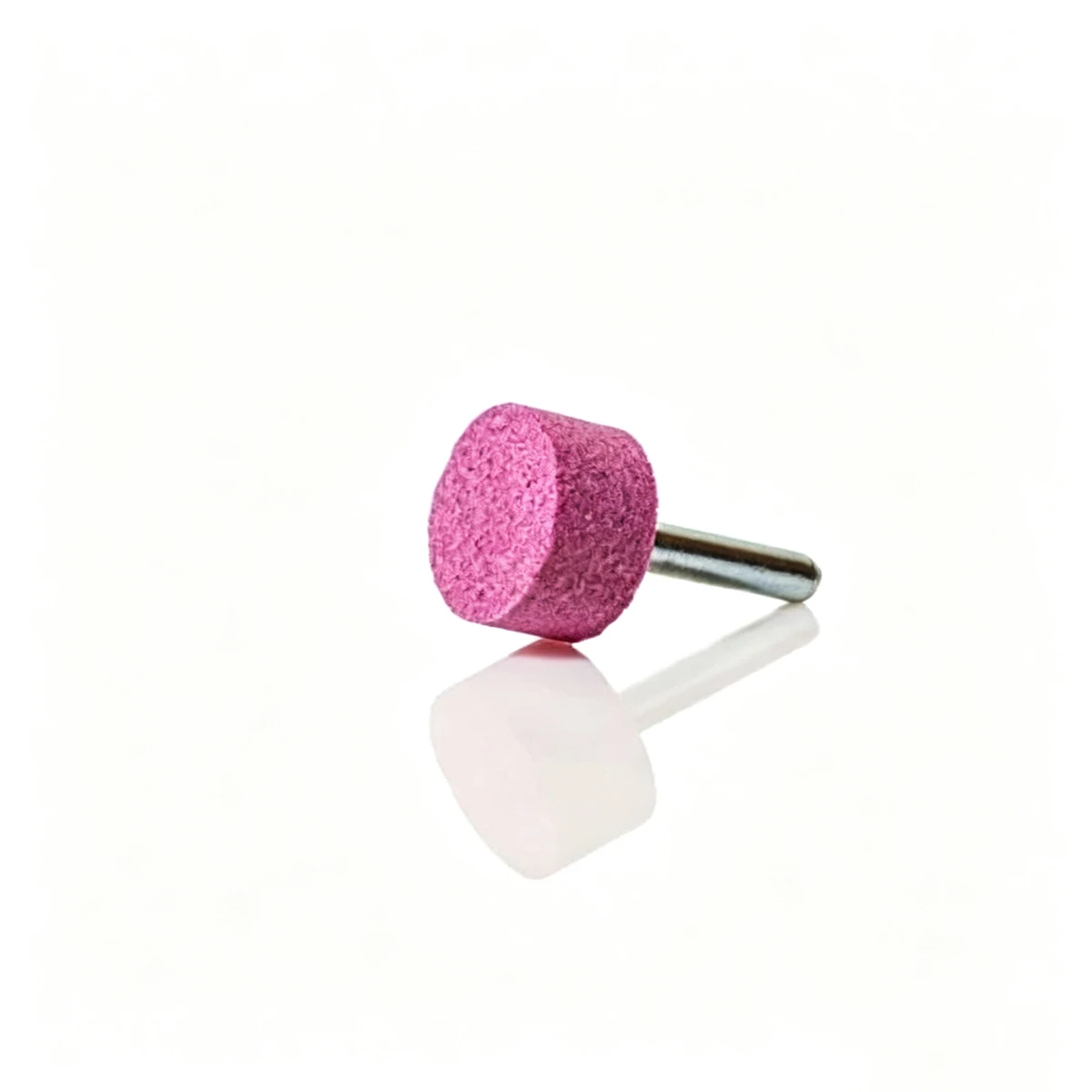

3/16" X 3/16" X 1/8" Shank B93 Mounted Point Tools

It is a good assistant for grinding and polishing of metal and non-metal materials Used for various kinds of electric grinder, grinding machine to remove burr, surface grinding, time - saving Wide adaptability: it can play an excellent role especially for stainless steel and other metals. Low noise and few dust during grinding, and will not rust and fall out like the steel brush High hardness and toughness, durabale: The hardness of chrome corundum is similar to that of white corundum, and its toughness is higher, sharper and more durable

Model:3/16" X 3/16" X 1/8" Shank B93 Mounted Point Tools

Brand:GC ABRASIVES

Code:68042210

Min. Order:1,000 Pieces

Port:Shanghai, China

Production Capacity:50, 000, 000PCS/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal

Transport Package:Standard Package suit for long sea - voyage

Description

GC Abrasives mounted points are top-notch grinding tools with a long service life and high removal rates.

For grinding, deburring and finishing on stainless steel, aluminum, and exotic materials.

Product Features
Debur and finish in one step
Controlled metal removal without changing part geometry
Long-life
Smooth, chatter free grinding
Ideal for deburring and polishing stainless steel, aluminum, mild steel, and exotics.
Non loading on aluminum, brass, bronze, and other non-ferrous metals.

Typical Applications By Industry
Aircraft/Aerospace - Debur and finish engine components
Automotive - Debur, chamfer and finish machined/cast parts
Tool & Die - Clean, debur and finish
Fabrication - Corner blending, edge breaking, I. D. And O. D. Debur and blend.
Jewelry - Remove parting lines and finish casting


Shape No.	Wheel Diameter	Wheel Thickness	1/2" Overhang	1" Overhang
B41	5/8	5/8	33,750	23,250
B42	1/2	3/4	33,750	23,250
B43	1/4	5/8	76,160	46,200
B44	7/32	3/8	68,400	42,370
B45	3/16	5/16	79,600	49,650
B46	1/8	5/16	83,530	53,580
B51	7/16	3/4	45,370	28,500
B52	3/8	3/4	45,370	28,500
B53	5/16	5/8	60,000	37,120
B54	1/4	1/2	60,000	38,020
B61	3/4	5/16	38,250	24,370
B62	1/2	3/8	41,020	26,400
B71	5/8	1/8	61,120	43,970
B91	1/2	5/8	34,500	22,500
B101	5/8	11/16	33,750	23,250
B102	5/8	1/2	45,370	28,500
B104	5/16	3/8	68,400	42,370
B111	7/16	11/16	33,750	23,250
B112	3/8	1/2	45,370	28,500
B121	1/2	1/2	45,370	28,500
B122	3/8	3/8	61,650	37,720
B123	3/16	3/16	84,720	54,760
B131	1/2	1/2	34,500	22,500
B132	3/8	1/2	45,370	28,500
B133	3/8	3/8	54,000	33,000
