Vitrified-Bonded Abrasives>Regulating Wheels

Dish Grinding Wheels

Material: Ceramic ; Grit: 80# ; RPM: 35m/s Size: 125mm/Approx.5" x 32mm/Approx.1-1/4" x 13mm (Diameter x Hole Diameter x Thickness) High hardness, durable, wear resistant, good abrasion resistance & grinding performance.Fine sand production, smooth edge, wear resistance, polishing effect is very good.For the polishing/grinding of metals, ceramics, marble, polished wood crafts, etc. Widely used in fine polishing of stainless steel, copper, aluminum and other metal and furniture, ceramics, marble and other non-metallic.Suitable for molding grinding, precision grinding of tools, measuring tools, instrument parts, threaded parts, etc., and other high-gloss finishes.

Model:5 Inch with 1-1/4" Bore for Polishing Grinding Metals,Marble and Wood Crafts

Brand:GC ABRASIVES

Code:68042210

Min. Order:500 Pieces

Port:Shanghai, China

Production Capacity:10, 000PCS/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Transport Package:Standard Package suit for long sea - voyage

Description

DISH GRINDING WHEELS

The vitrified dish wheels are intended for grinding and sharpening of tools such as milling cutters, reamers, counterbores.

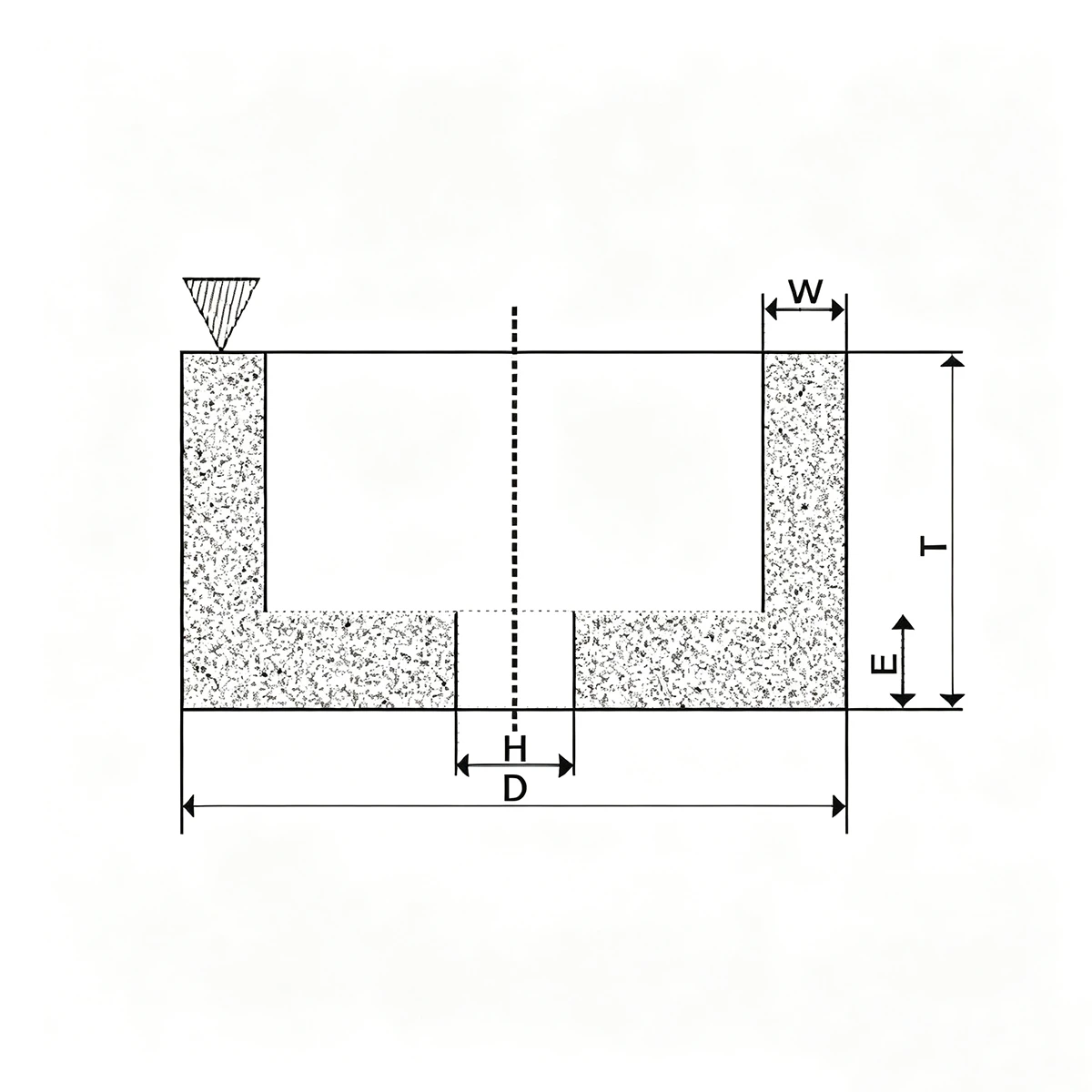

Dimensions [mm]
D	J	T	U	H	W	E	K
80	31	10	2,5	13	4	6	31
100	36	13	3,2	20	5	7	36
125	61	13	3,2	20; 32	6	7	61
150	66	16	3,2	20; 32	8	9	66
175	90	18	3,2	32	9	10	90
200	90	20	3,2	32	10	12	90
250	100	25	3,2	32	11	13	100

CHARACTERISTICS
Type and nature of abrasive	99A M CrA 98C 99C
Grain size (granulation)	46 - 100
Hardness grade	H - M
Type and nature of bond	VE01; VC01; VTE10; VTC10
Operational speed [m/s]	GRANULATION	HARDNESS	MAX. OPER. SPEED
	24 - 30	J - M	33
	36 - 46	H - M	33(45)
	54 - 100	H - M	45
