Min. Order:300 Pieces
Port:Shanghai, China
Production Capacity:50, 000, 000PCS/Month
Payment Terms:L/C, T/T, D/P
Impact Drill Head:Impact Drill
Drill shape:Round
Condition:New
Customized:Customized
Manufacturing Process:Fully Ground
Material:HSS or HSS Co
Surface Finishing:Tin, Rainbow and Bright etc
Point Angle:118 and 135 Split Point
Trademark:INGLAU
Transport Package:as Requested
Origin:Crafted by Inglau Tools
HS Code:82975090
Type:Rotary Hammer Drill
Classification:Hammer Drill
Drill Brand:Inglau
Applications:Building and Industrial
Impact Drill Structure:Canines Style
Specification:3mm~13mm, 3MM~13MM
Description

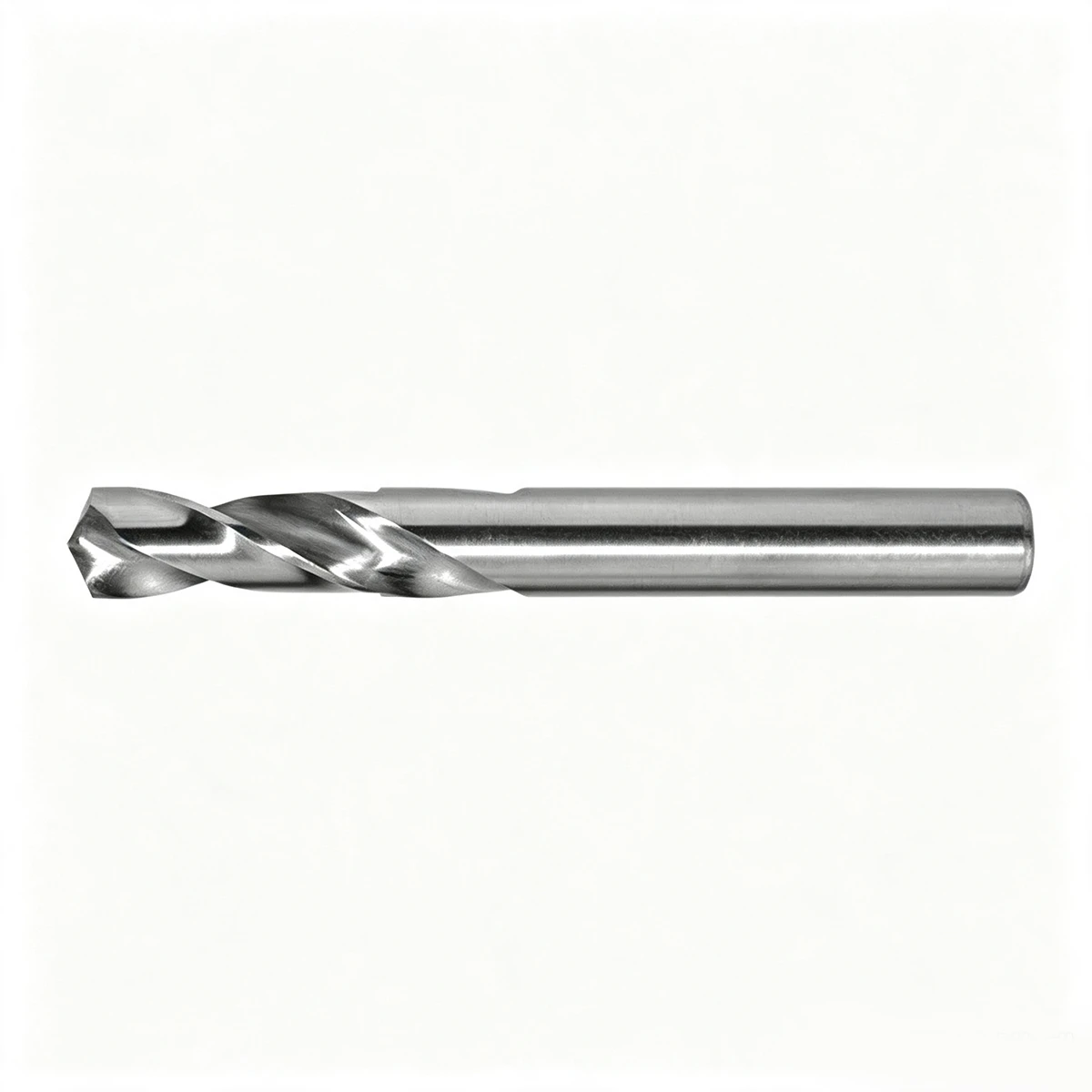

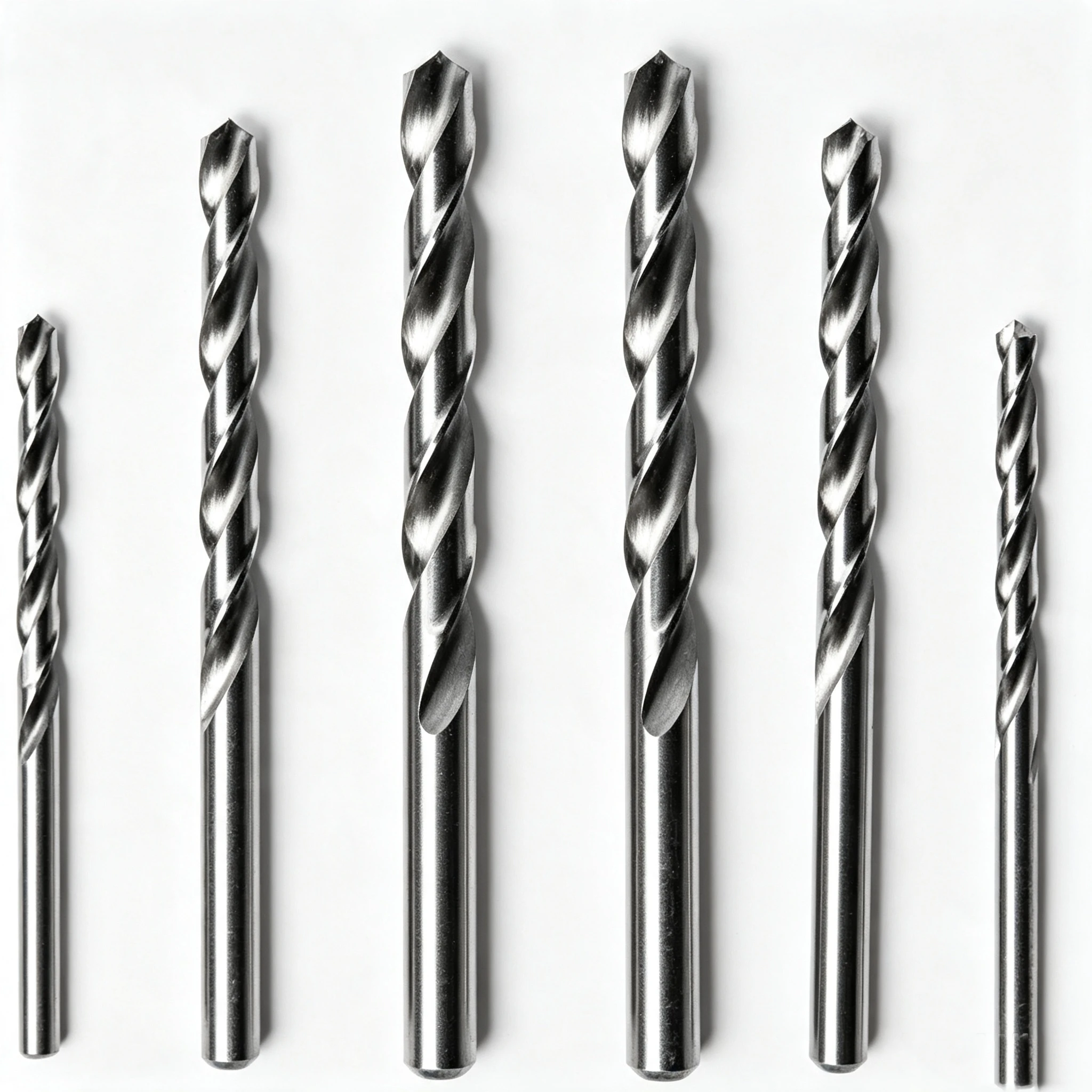

HSS Straight Shank Twist Drill -DIN338
D Diameter
L1 Overall Length
L2 Flute Length
D Diameter
L1 Overall Length
L2 Flute Length
| DIN1869-1 | DIN1869-2 | DIN1869-3 | ||||||||
| D | L1 | L2 | D | L1 | L2 | D | L1 | L2 | ||
| 2.00 | 125 | 85 | 2.00 | 160 | 110 | 2.00 | 200 | 135 | ||
| 2.50 | 140 | 95 | 2.50 | 180 | 120 | 2.50 | 225 | 150 | ||
| 3.00 | 150 | 100 | 3.00 | 190 | 130 | 3.00 | 240 | 160 | ||
| 3.50 | 165 | 115 | 3.50 | 210 | 145 | 3.50 | 265 | 180 | ||
| 4.00 | 175 | 120 | 4.00 | 220 | 150 | 4.00 | 280 | 190 | ||
| 4.50 | 185 | 125 | 4.50 | 235 | 160 | 4.50 | 295 | 200 | ||
| 5.00 | 195 | 135 | 5.00 | 245 | 179 | 5.00 | 315 | 210 | ||
| 5.50 | 205 | 140 | 5.50 | 260 | 180 | 5.50 | 330 | 225 | ||
| 6.00 | 205 | 140 | 6.00 | 260 | 180 | 6.00 | 330 | 225 | ||
| 6.50 | 215 | 150 | 6.50 | 275 | 190 | 6.50 | 350 | 235 | ||
| 7.00 | 225 | 155 | 7.00 | 290 | 200 | 7.00 | 370 | 250 | ||
| 7.50 | 225 | 155 | 7.50 | 290 | 200 | 7.50 | 370 | 250 | ||
| 8.00 | 240 | 165 | 8.00 | 305 | 210 | 8.00 | 390 | 265 | ||
| 8.50 | 240 | 165 | 8.50 | 305 | 210 | 8.50 | 390 | 265 | ||
| 9.00 | 250 | 175 | 9.00 | 320 | 220 | 9.00 | 410 | 280 | ||
| 9.50 | 250 | 175 | 9.50 | 320 | 220 | 9.50 | 410 | 280 | ||
| 10.00 | 265 | 185 | 10.00 | 340 | 235 | 10.00 | 430 | 295 | ||
| 10.50 | 265 | 185 | 10.50 | 340 | 235 | 10.50 | 430 | 295 | ||
| 11.00 | 280 | 195 | 11.00 | 365 | 250 | 11.00 | 455 | 310 | ||
| 11.50 | 280 | 195 | 11.50 | 365 | 250 | 11.50 | 455 | 310 | ||
| 12.00 | 295 | 205 | 12.00 | 375 | 260 | 12.00 | 480 | 330 | ||
| 12.50 | 295 | 205 | 12.50 | 375 | 260 | 12.50 | 480 | 330 | ||
| 13.00 | 295 | 205 | 13.00 | 375 | 260 | 13.00 | 480 | 330 | ||
