Min. Order:1,000 Pieces
Port:Shanghai, China
Production Capacity:50, 000, 000PCS/Month
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Model NO.:HSS Straight Shank Twist Drills DIN1897
Trademark:INGLAU
Transport Package:as Requested
Specification:Metal drill bits HSS-G, metric
Origin:Crafted by Inglau Tools
HS Code:82075010
Customized:Customized
Certification:BIN, AISI
Length:Jobber-length
Type:Twist Drill Bit
Material:High Speed Steel
Usage:Well Drilling, Metal Drilling, Masonry Drilling
Description

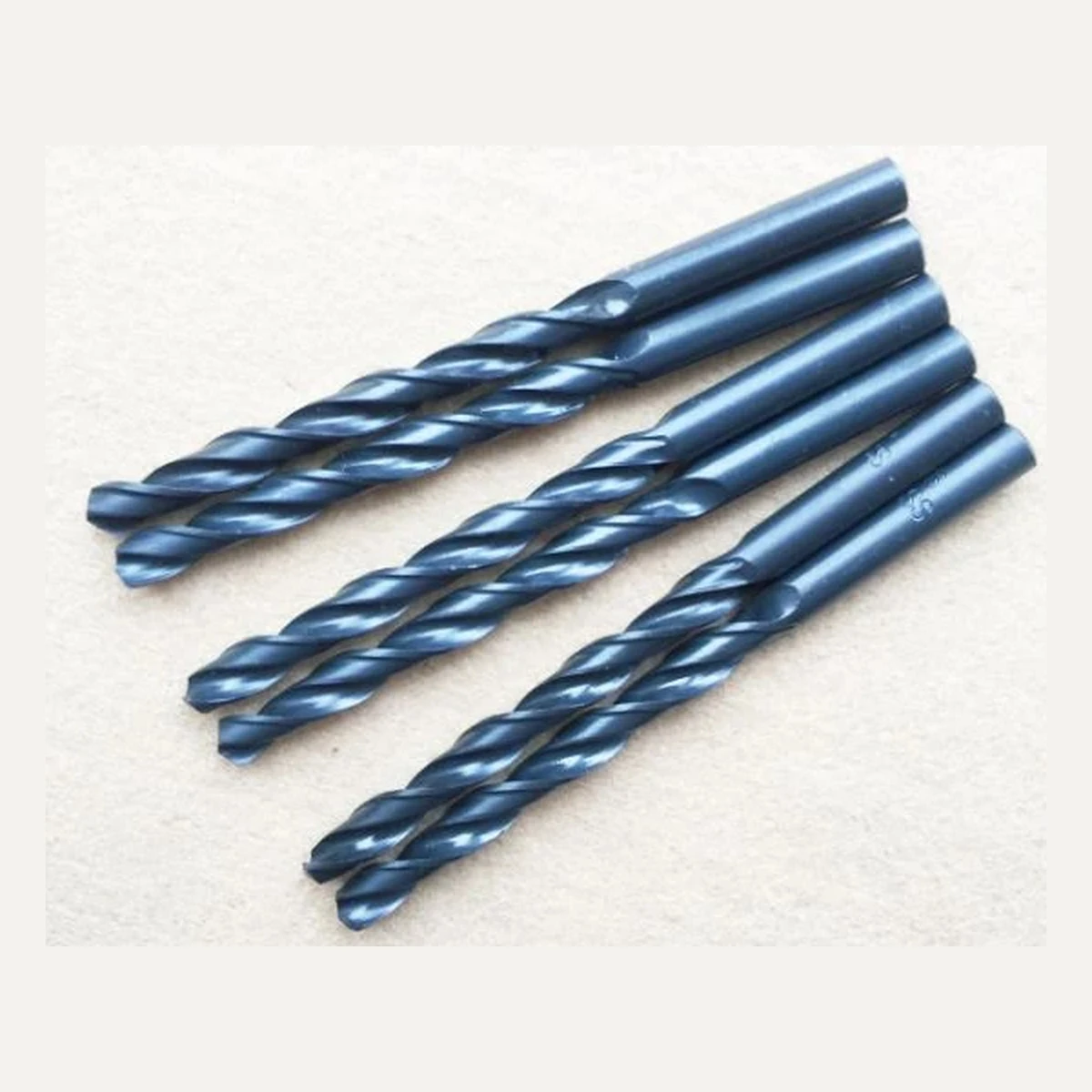

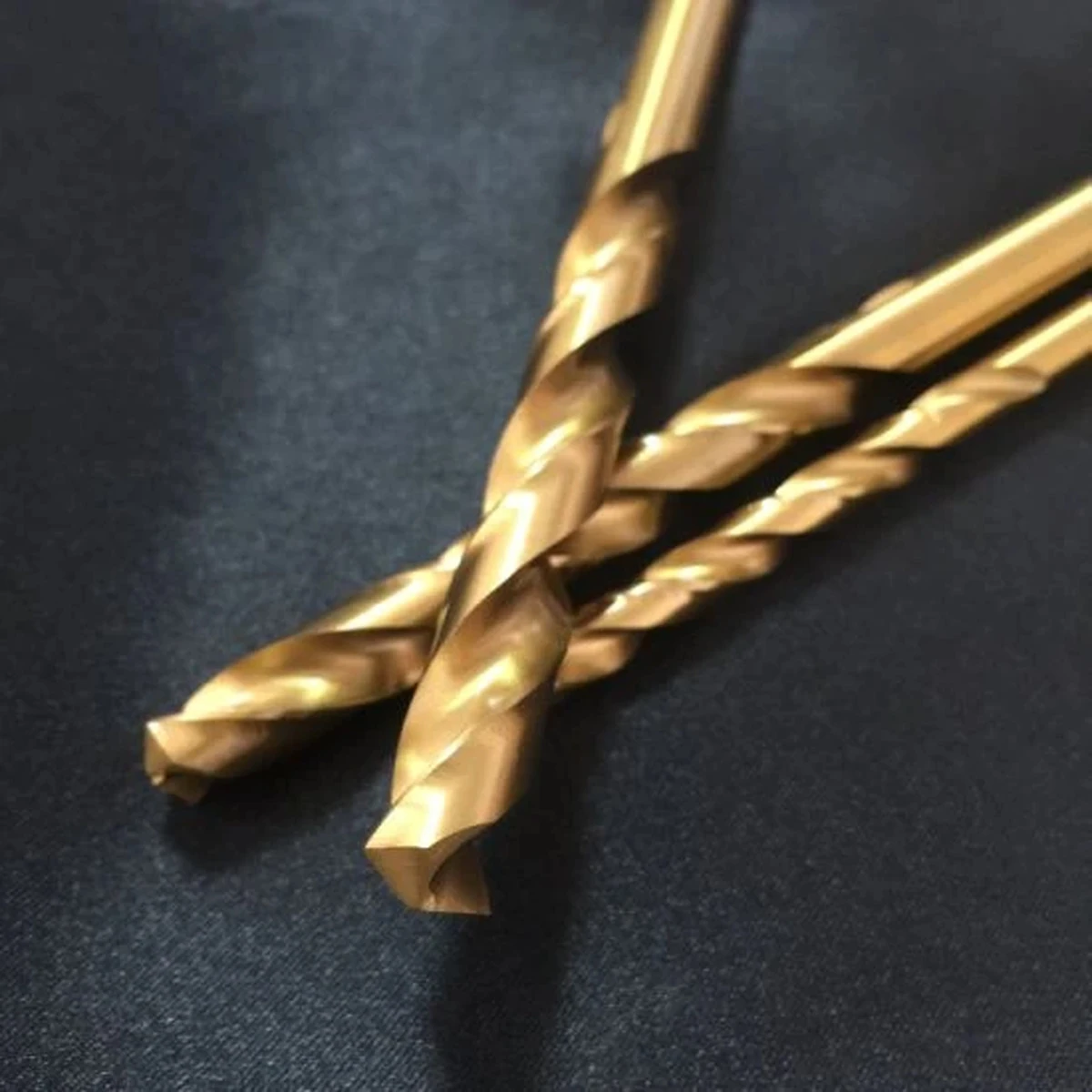

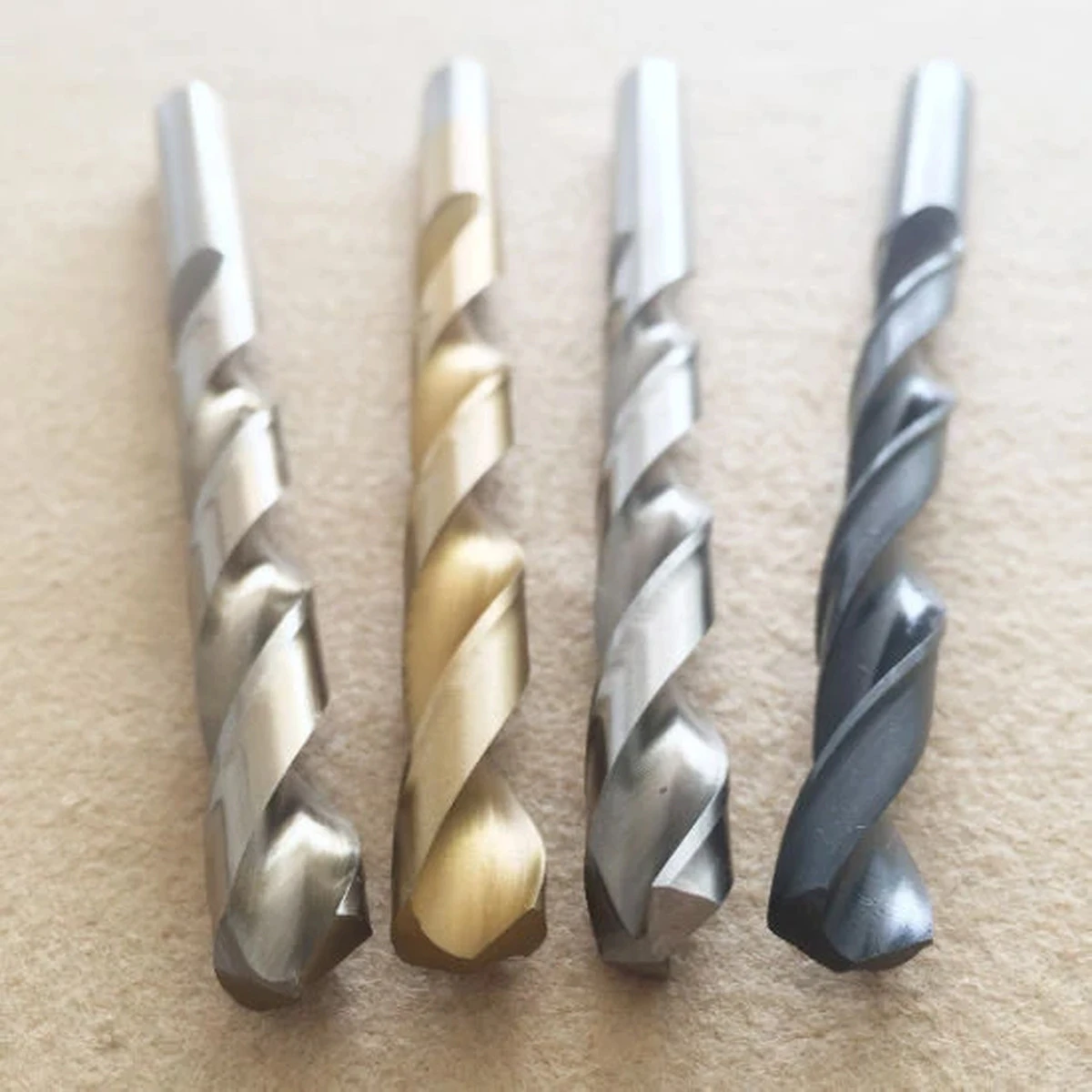

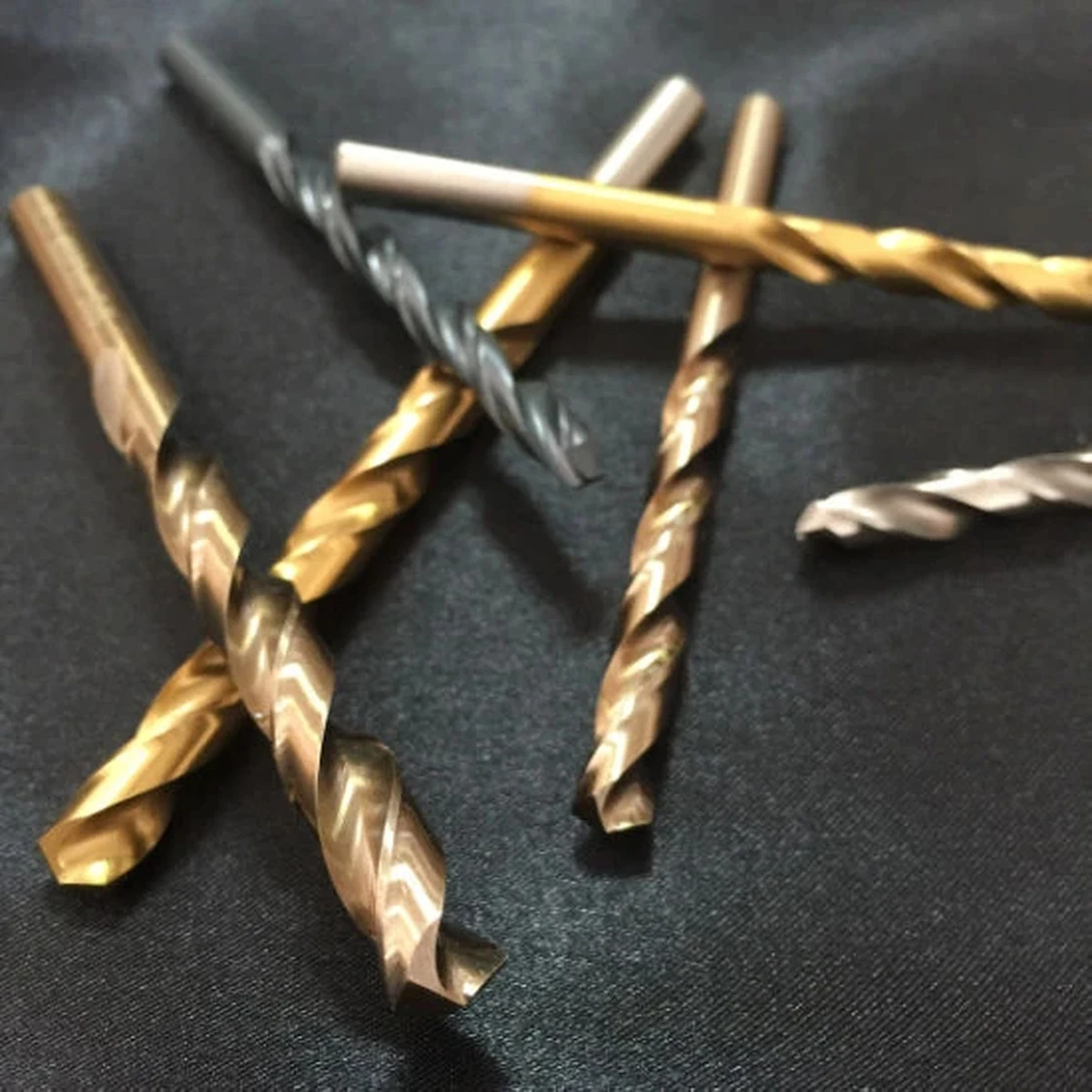

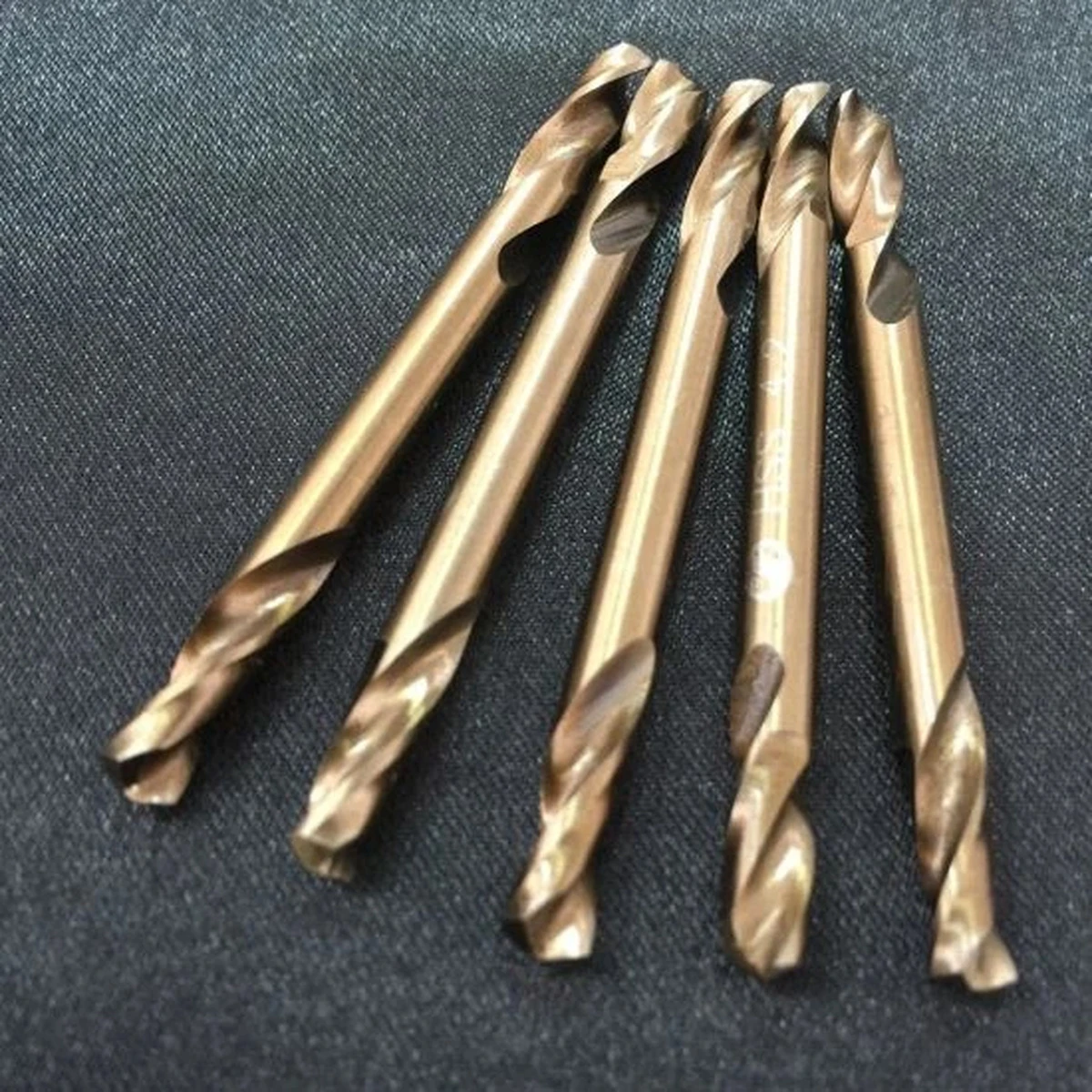

HSS Straight Shank Twist Drills DIN1897
| Diameter | Flute Length | Overall Length |
| D | L1 | L2 |
| 1 | 6 | 26 |
| 1.1 | 7 | 28 |
| 1.2 | 8 | 30 |
| 1.3 | 8 | 30 |
| 1.4 | 9 | 32 |
| 1.5 | 9 | 32 |
| 1.6 | 10 | 34 |
| 1.7 | 10 | 34 |
| 1.8 | 11 | 36 |
| 1.9 | 11 | 36 |
| 2 | 12 | 38 |
| 2.1 | 12 | 38 |
| 2.2 | 13 | 40 |
| 2.3 | 13 | 40 |
| 2.4 | 14 | 43 |
| 2.5 | 14 | 43 |
| 2.6 | 14 | 43 |
| 2.7 | 16 | 46 |
| 2.8 | 16 | 46 |
| 2.9 | 16 | 46 |
| 3 | 16 | 46 |
| 3.1 | 18 | 49 |
| 3.2 | 18 | 49 |
| 3.3 | 18 | 49 |
| 3.4 | 20 | 52 |
| 3.5 | 20 | 52 |
| 3.6 | 20 | 52 |
| 3.7 | 20 | 52 |
| 3.8 | 22 | 55 |
| 3.9 | 22 | 55 |
| 4 | 22 | 55 |
| 4.1 | 22 | 55 |
| 4.2 | 22 | 55 |
| 4.3 | 24 | 58 |
| 4.4 | 24 | 58 |
| 4.5 | 24 | 58 |
| 4.6 | 24 | 58 |
| 4.7 | 24 | 58 |
| 4.8 | 26 | 62 |
| 4.9 | 26 | 62 |
| 5 | 26 | 62 |
| 5.1 | 26 | 62 |
| 5.2 | 26 | 62 |
| 5.3 | 28 | 66 |
| 5.4 | 28 | 66 |
| 5.5 | 28 | 66 |
| 5.6 | 28 | 66 |
| 5.7 | 28 | 66 |
| 5.8 | 28 | 66 |
| 5.9 | 28 | 66 |
| 6 | 28 | 66 |
| 6.1 | 31 | 70 |
| 6.2 | 31 | 70 |
| 6.3 | 31 | 70 |
| 6.4 | 31 | 70 |
| 6.5 | 31 | 70 |
| 6.6 | 31 | 70 |
| 6.7 | 31 | 70 |
| 6.8 | 34 | 74 |
| 6.9 | 34 | 74 |
| 7 | 34 | 74 |
| 7.1 | 34 | 74 |
| 7.2 | 34 | 74 |
| 7.3 | 34 | 74 |
| 7.4 | 34 | 74 |
| 7.5 | 34 | 74 |
| 7.6 | 37 | 79 |
| 7.7 | 37 | 79 |
| 7.8 | 37 | 79 |
| 7.9 | 37 | 79 |
| 8 | 37 | 79 |
| 8.1 | 37 | 79 |
| 8.2 | 37 | 79 |
| 8.3 | 37 | 79 |
| 8.4 | 37 | 79 |
| 8.5 | 37 | 79 |
| 8.6 | 40 | 84 |
| 8.7 | 40 | 84 |
| 12.7 | 51 | 102 |
| 12.8 | 51 | 102 |
| 12.9 | 51 | 102 |
| 13 | 51 | 102 |
| 13.1 | 51 | 102 |
| 13.2 | 51 | 102 |
| 13.3 | 54 | 107 |
| 13.4 | 54 | 107 |
| 13.5 | 54 | 107 |
| 13.6 | 54 | 107 |
| 13.7 | 54 | 107 |
| 13.8 | 54 | 107 |
| 13.9 | 54 | 107 |
| 14 | 54 | 107 |
| 14.25 | 56 | 111 |
| 14.5 | 56 | 111 |
| 14.75 | 56 | 111 |
| 15 | 56 | 111 |
| 15.25 | 58 | 115 |
| 15.5 | 58 | 115 |
| 15.75 | 58 | 115 |
| 16 | 58 | 115 |
| 16.25 | 58 | 119 |
| 16.5 | 58 | 119 |
| 16.75 | 58 | 119 |
| 17 | 58 | 119 |
| 17.25 | 62 | 123 |
| 17.5 | 62 | 123 |
| 17.75 | 62 | 123 |
| 18 | 62 | 123 |
| 18.25 | 62 | 127 |
| 18.5 | 62 | 127 |
| 18.75 | 62 | 127 |
| 19 | 62 | 127 |
| 19.25 | 66 | 131 |
| 19.5 | 66 | 131 |
| 19.75 | 66 | 131 |
| 20 | 66 | 131 |
