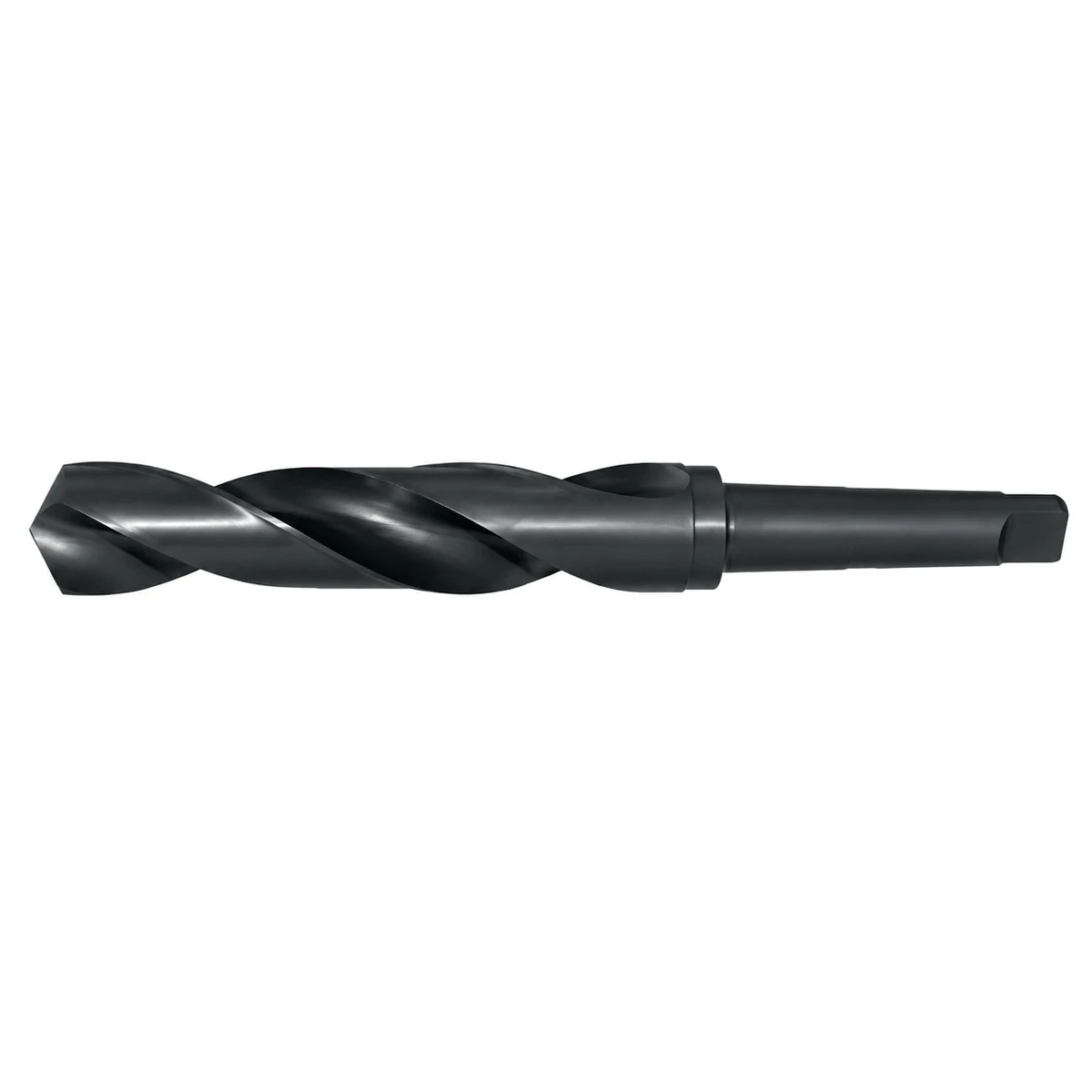

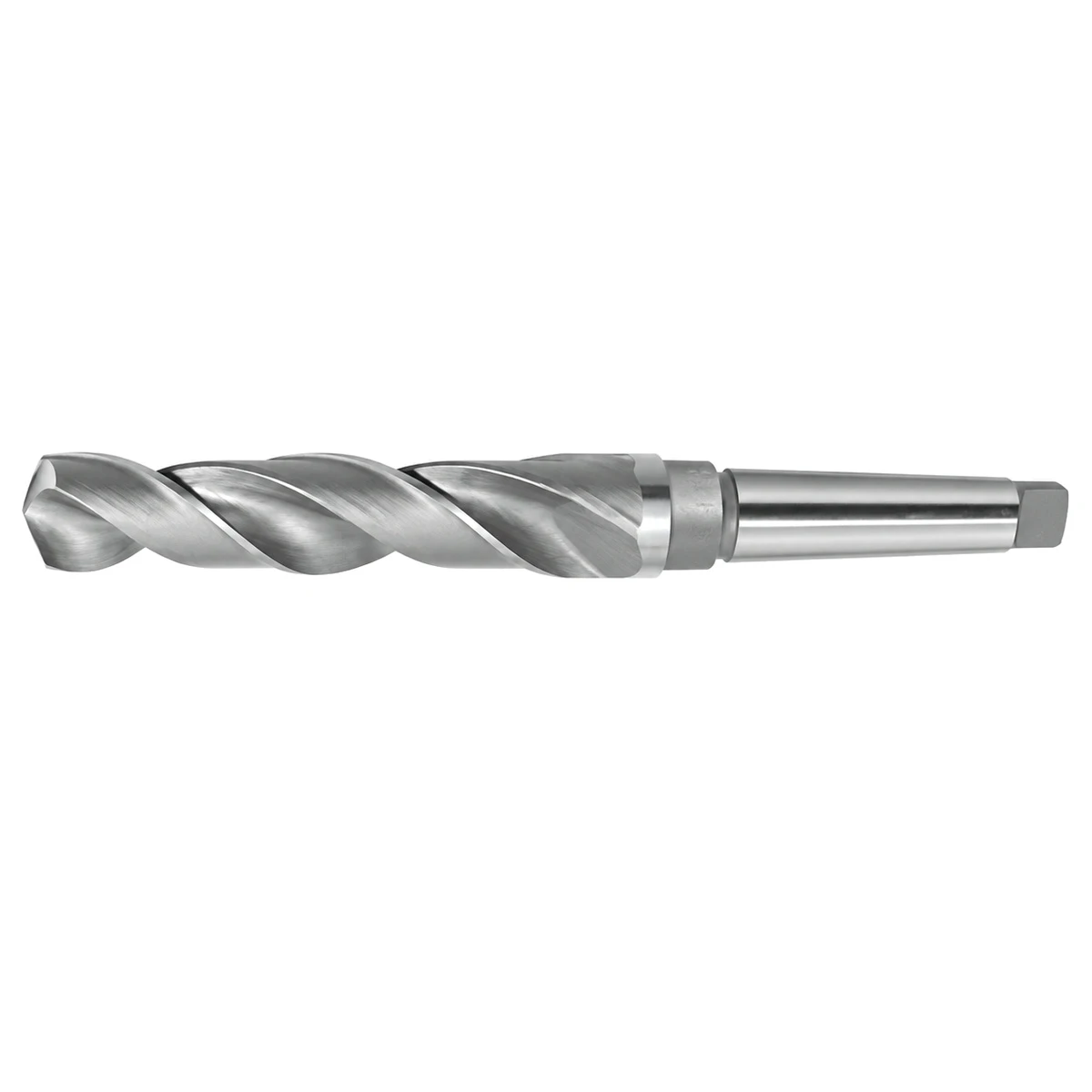

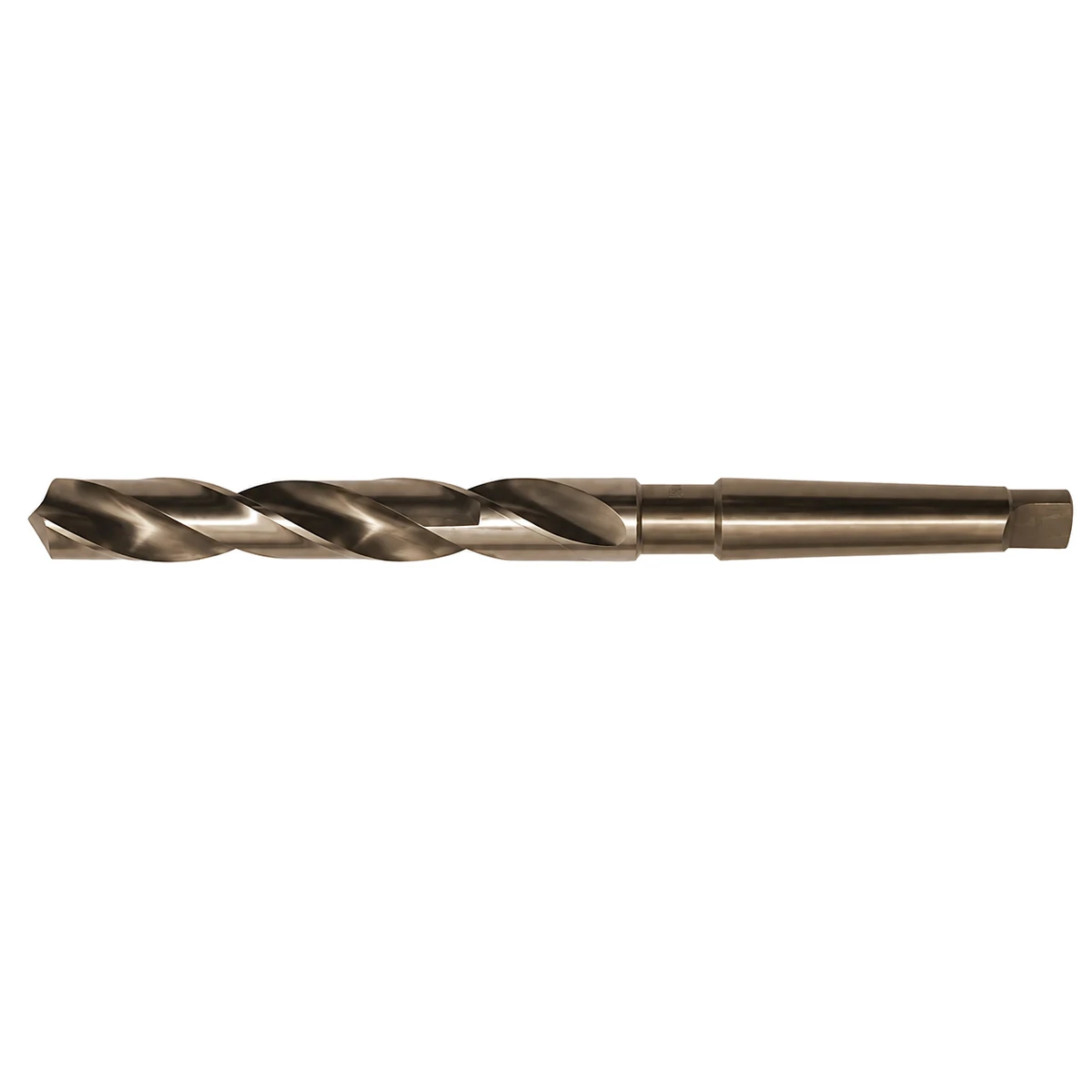

HSS Taper Shank Twist Drill -ANSI Standard

Min. Order:300 Pieces

Port:Shanghai, China

Production Capacity:50, 000, 000PCS/Month

Payment Terms:L/C, T/T, D/P

Model NO.:ANSI Standard

Drill shape:Round

Condition:New

Customized:Customized

Manufacturing Process:Milled Fully Ground

Material:HSS or HSS Co

Point Angle:118 Split Point

Trademark:INGLAU

Transport Package:as Requested

Origin:Crafted by Inglau Tools

HS Code:82975090

Type:Rotary Hammer Drill

Classification:Hammer Drill

Applications:Building and Industrial

Impact Drill Structure:Canines Style

Specification:1/8"-3-1/4", 3MM~100MM

Impact Drill Head:Impact Drill

Description

HSS Taper Shank Twist Drill -DIN345 GB1438-85

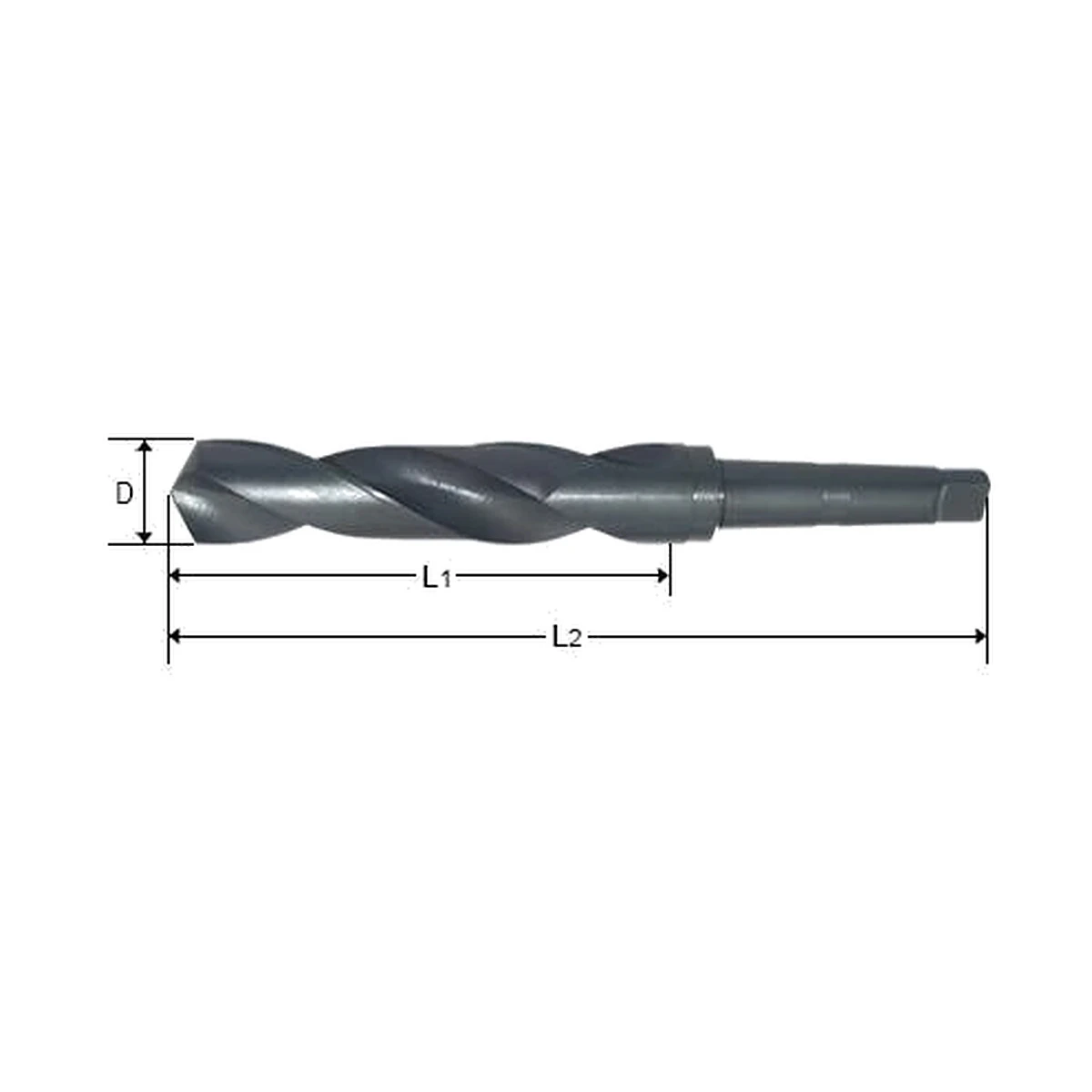

D Diameter

L1 Overall Length

L2 Flute Length

Diameter	Flute Length	Overall Lenth	Taper Shank #
D	L1	L2	Taper Shank #
1/8	1-7/16	4-5/8	1
9/64	1-7/16	4-3/4	1
5/32	1-11/16	4-27/32	1
11/64	1-27/32	5-1/32	1
3/16	2-1/16	5-1/4	1
13/64	2-1/16	5-1/4	1
7/32	2-1/4	5-7/16	1
15/64	2-1/4	5-7/16	1
1/4	2-1/2	5-11/16	1
17/64	2-23/32	5-29/32	1
9/32	2-23/32	5-29/32	1
19/64	2-15/16	6-1/8	1
5/16	2-15/16	6-1/8	1
21/64	2-15/16	6-1/8	1
1/32	3-3/16	6-3/8	1
23/64	3-3/16	6-3/8	1
3/8	3-7/16	6-7/8	1
25/64	3-7/16	6-7/8	1
13/32	3-7/16	6-7/8	1
27/64	3-11/16	6-7/8	1
7/16	3-11/16	6-7/8	1
29/64	3-11/16	6-7/8	1
15/32	3-31/32	7-5/32	1
31/64	3-31/32	7-5/32	1
1/2	3-31/32	7-5/32	1
33/64	3-31/32	7-5/32	1
17/32	4-1/4	7-7/16	1
35/64	4-1/4	7-7/16	1
9/16	4-1/2	8-3/8	2
37/64	4-1/2	8-3/8	2
19/32	4-3/4	8-5/8	2
39/64	4-3/4	8-5/8	2
5/8	4-3/4	8-5/8	2
41/64	4-7/8	8-3/4	2
21/32	4-7/8	8-3/4	2
43/64	5-1/8	9	2
11/16	5-1/8	9	2
45/64	5-1/8	9	2
23/32	5-1/4	9-1/8	2
47/64	5-1/4	9-1/8	2
3/4	5-1/2	9-3/8	2
49/64	5-1/2	9-3/8	2
25/32	5-1/2	9-3/8	2
51/64	5-3/4	9-5/8	2
13/16	5-3/4	9-5/8	2
53/64	5-3/4	9-5/8	2
27/32	5-7/8	9-3/4	2
55/64	5-7/8	9-3/4	2
7/8	5-7/8	9-3/4	2
57/64	6-1/8	10	2
29/32	6-1/8	10	2
59/64	6-1/8	10-7/8	3
15/16	6-1/4	11	3
61/64	6-1/4	11	3
31/32	6-1/4	11	3
63/64	6-1/2	11-1/4	3
1	6-1/2	11-1/4	3
1-1/64	6-1/2	11-1/4	3
1-1/32	6-1/2	11-1/4	3
1-5/8	6-5/8	11-3/8	3
1-1/16	6-5/8	11-3/8	3
1-5/64	6-7/8	11-5/8	3
1-3/32	6-7/8	11-5/8	3
1-7/64	6-7/8	11-5/8	3
1-1/8	6-7/8	11-5/8	3
1-9/64	6-7/8	11-5/8	3
1-5/32	6-7/8	11-5/8	3
1-11/64	6-7/8	11-5/8	3
1-3/16	7-1/8	11-7/8	3
1-13/64	7-1/8	11-7/8	3
1-7/32	7-1/8	11-7/8	3
1-15/64	7-1/8	11-7/8	3
1-1/4	7-1/4	12	3
1-17/64	7-1/4	13-1/8	4
1-9/32	7-1/4	13-1/8	4
1-19/64	7-1/4	13-1/8	4
1-5/16	7-1/4	13-1/8	4
1-21/64	7-1/2	13-3/8	4
1-1/32	7-1/2	13-3/8	4
1-23/64	7-1/2	13-3/8	4
1-3/8	7-1/2	13-3/8	4
1-25/64	7-1/2	13-3/8	4
1-13/32	7-5/8	13-1/2	4
1-27/64	7-5/8	13-1/2	4
1-7/16	7-5/8	13-1/2	4
1-29/64	7-5/8	13-1/2	4
1-15/32	7-5/8	13-1/2	4
1-31/64	7-7/8	13-3/4	4
1-1/2	7-7/8	13-3/4	4
1-33/64	7-7/8	13-3/4	4
1-17/32	7-7/8	13-3/4	4
1-35/64	7-7/8	13-3/4	4
1-9/16	7-7/8	13-3/4	4
1-37/64	8-1/8	14	4
1-19/32	8-1/8	14	4
1-39/64	8-1/8	14	4
1-5/8	8-1/8	14	4
1-11/64	8-1/8	14	4
1-21/32	8-1/8	14	4
1-43/64	8-1/8	14	4
1-11/16	8-1/4	14-1/8	4
1-45/64	8-1/4	14-1/8	4
1-23/32	8-1/4	14-1/8	4
1-47/61	8-1/4	14-1/8	4
1-3/4	8-1/4	14-1/8	4
1-49/64	8-1/4	14-1/8	4
1-25/32	8-1/2	14-3/8	4
1-51/64	8-1/2	14-3/8	4
1-13/16	8-1/2	14-3/8	4
1-53/64	8-1/2	14-3/8	4
1-27/32	8-1/2	14-3/8	4
1-55/64	8-1/2	14-3/8	4
1-7/8	8-5/8	14-1/2	4
1-57/64	8-5/8	14-1/2	4
