Milled, HSS Straight Shank Twist Drill -Taper Length

Min. Order:1,000 Pieces

Port:Shanghai, China

Production Capacity:50, 000, 000PCS/Month

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Model NO.:3/64"-2", A-Z

Trademark:INGLAU

Transport Package:as Requested

Specification:3/64"-2", A-Z

Origin:Crafted by Inglau

HS Code:82075010

Customized:Customized

Certification:BIN, AISI

Length:Taper-length

Type:Twist Drill Bit

Material:High Speed Steel

Usage:Well Drilling, Metal Drilling, Masonry Drilling

Description

HSS Straight Shank Twist Drill -TAPER LENGTH

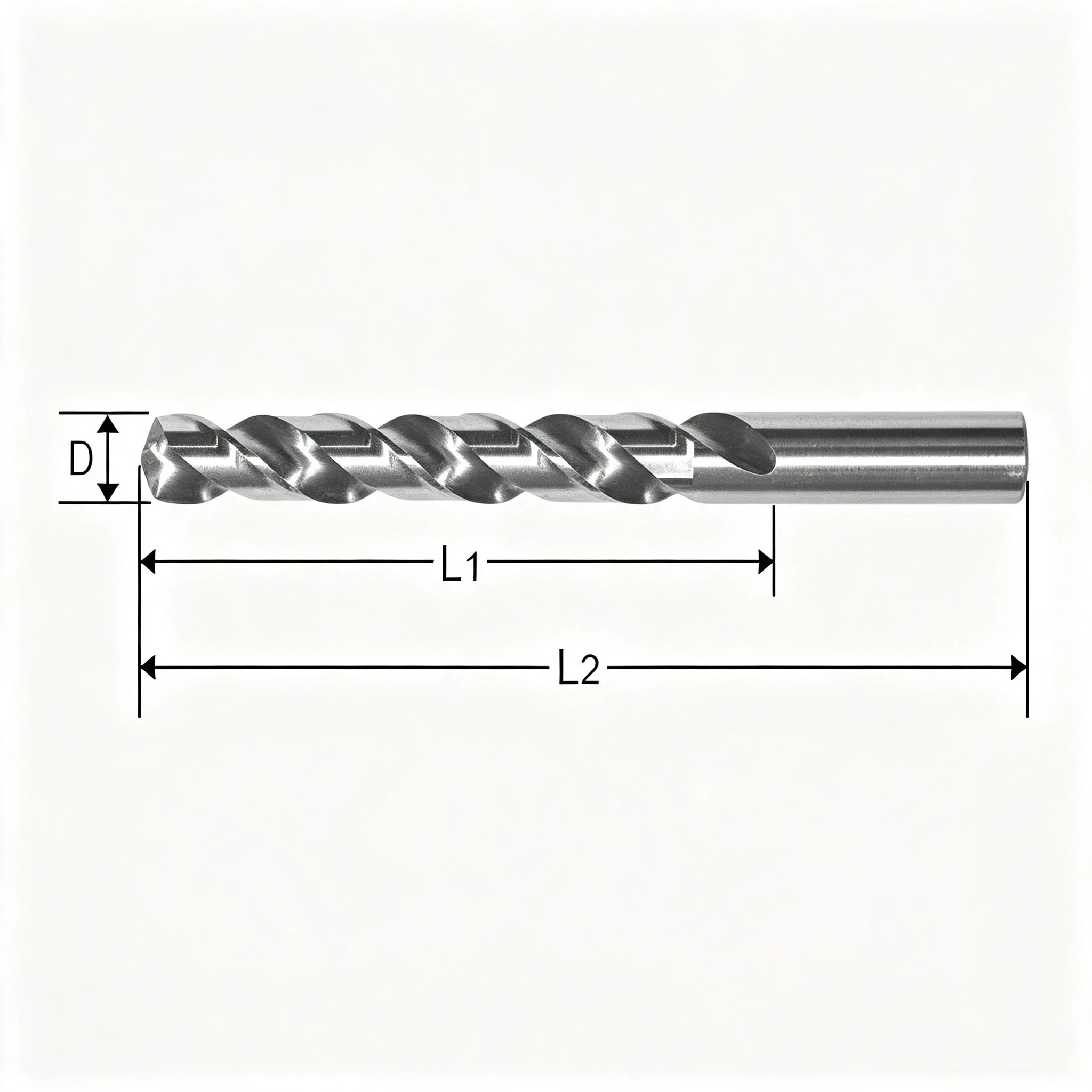

D Diameter
L1 Overall Length
L2 Flute Length

Size	Decimal	Flute Length	Overall Length	Size	Decimal	Flute Length	Overall Length
Size	Equivalent	L1	L2	Size	Equivalent	L1	L2
1/64	0.0156	5/16	1-1/2	1	0.2280	3-3/4	6-1/8
1/32	0.0312	3/4	2	2	0.2210	3-3/4	6-1/8
3/64	0.0469	1-1/8	2-1/4	3	0.2130	3-5/8	6
1/16	0.0625	1-3/4	3	4	0.2090	3-5/8	6
5/64	0.0781	2	3-3/4	5	0.2055	3-5/8	6
3/32	0.0938	2-1/4	4-1/4	6	0.2040	3-5/8	6
7/64	0.1094	2-1/2	4-5/8	7	0.2010	3-5/8	6
1/8	0.1250	2-3/4	5-1/8	8	0.1990	3-5/8	6
9/64	0.1406	3	5-3/8	9	0.1960	3-5/8	6
5/32	0.1562	3	5-3/8	10	0.1935	3-5/8	6
11/64	0.1719	3-3/8	5-3/4	11	0.1910	3-5/8	6
3/16	0.1875	3-3/8	5-3/4	12	0.1890	3-5/8	6
13/64	0.2031	3-5/8	6	13	0.1850	3-3/8	5-3/4
7/32	0.2188	3-5/8	6	14	0.1820	3-3/8	5-3/4
15/64	0.2344	3-3/4	6-1/8	15	0.1800	3-3/8	5-3/4
1/4	0.2500	3-3/4	6-1/8	16	0.1770	3-3/8	5-3/4
17/64	0.2656	3-7/8	6-1/4	17	0.1730	3-3/8	5-3/4
9/32	0.2812	3-7/8	6-1/4	18	0.1695	3-3/8	5-3/4
19/64	0.2969	4	6-3/8	19	0.1660	3-3/8	5-3/4
5/16	0.3125	4	6-3/8	20	0.1610	3-3/8	5-3/4
21/64	0.3281	4-1/8	6-1/2	21	0.1590	3-3/8	5-3/4
11/32	0.3438	4-1/8	6-1/2	22	0.1570	3-3/8	5-3/4
23/64	0.3594	4-1/4	6-3/4	23	0.1540	3	5-3/8
3/8	0.3750	4-1/4	6-3/4	24	0.1520	3	5-3/8
25/64	0.3906	4-3/8	7	25	0.1495	3	5-3/8
13/32	0.4062	4-3/8	7	26	0.1470	3	5-3/8
27/64	0.4219	4-5/8	7-1/4	27	0.1440	3	5-3/8
7/16	0.4375	4-5/8	7-1/4	28	0.1405	3	5-3/8
29/64	0.4531	4-3/4	7-1/2	29	0.1360	3	5-3/8
15/32	0.4688	4-3/4	7-1/2	30	0.1285	3	5-3/8
31/64	0.4844	4-3/4	7-3/4	31	0.1200	2-3/4	5-1/8
1/2	0.5000	4-3/4	7-3/4	32	0.1160	2-3/4	5-1/8
33/64	0.5156	4-3/4	8	33	0.1130	2-3/4	5-1/8
17/32	0.5312	4-3/4	8	34	0.1110	2-3/4	5-1/8
35/64	0.5469	4-7/8	8-1/4	35	0.1100	2-3/4	5-1/8
9/16	0.5625	4-7/8	8-1/4	36	0.1065	2-3/4	5-5/8
37/64	0.5781	4-7/8	8-3/4	37	0.1040	2-3/4	5-5/8
19/32	0.5938	4-7/8	8-3/4	38	0.1015	2-3/4	5-5/8
39/64	0.6094	4-7/8	8-3/4	39	0.0995	2-3/4	5-5/8
5/8	0.6250	4-7/8	8-3/4	40	0.0980	2-3/4	5-5/8
41/64	0.6406	5-1/8	9	41	0.0960	2-1/2	4-5/8
21/32	0.6562	5-1/8	9	42	0.0935	2-1/4	4-1/4
43/64	0.6719	5-3/8	9-1/4	43	0.0890	2-1/4	4-1/4
11/16	0.6875	5-3/8	9-1/4	44	0.0860	2-1/4	4-1/4
45/64	0.7031	5-5/8	9-1/2	45	0.0820	2-1/4	4-1/4
23/32	0.7188	5-5/8	9-1/2	46	0.0810	2-1/4	4-1/4
47/64	0.7344	5-7/8	9-3/4	47	0.0785	2-1/4	4-1/4
3/4	0.7500	5-7/8	9-3/4	48	0.0760	2	3-3/4
49/64	0.7656	6	9-7/8	49	0.0730	2	3-3/4
25/32	0.7812	6	9-7/8	50	0.0700	2	3-3/4
51/64	0.7969	6-1/8	10	51	0.0670	2	3-3/4
13/16	0.8125	6-1/8	10	52	0.0635	2	3-3/4
53/64	0.8281	6-1/8	10	53	0.0595	1-3/4	3
27/32	0.8438	6-1/8	10	54	0.0550	1-3/4	3
55/64	0.8594	6-1/8	10	55	0.0520	1-3/4	3
7/8	0.8750	6-1/8	10	56	0.0465	1-1/8	2-1/4
57/64	0.8906	6-1/8	10	57	0.0430	1-1/8	2-1/4
29/32	0.9062	6-1/8	10	58	0.0420	1-1/8	2-1/4
59/64	0.9219	6-1/8	10-3/4	59	0.0410	1-1/8	2-1/4
15/16	0.9375	6-1/8	10-3/4	60	0.0400	1-1/8	2-1/4
61/64	0.9531	6-3/8	11	61	0.0390	1-1/8	2-1/4
31/32	0.9688	6-3/8	11	62	0.0380	3/4	2
63/64	0.9844	6-3/8	11	63	0.0370	3/4	2
1	1.0000	6-3/8	11	64	0.0360	3/4	2
1-1/64	1.0156	6-1/2	11-1/8	65	0.0350	3/4	2
1-1/32	1.0312	6-1/2	11-1/8	66	0.0330	3/4	2
1-3/64	1.0469	6-5/8	11-1/4	67	0.0320	3/4	2
2001-1-16	1.0625	6-5/8	11-1/4	68	0.0310	3/4	2
1-5/64	1.0781	6-7/8	11-1/2	69	0.0292	3/4	2
1-3/32	1.0938	6-7/8	11-1/2	70	0.0280	3/4	2
1-7/64	1.1094	7-1/8	11-3/4	71	0.0260	3/4	2
2001-1-8	1.1250	7-1/8	11-3/4	72	0.0250	5/16	1-1/2
1-9/64	1.1406	7-1/4	11-7/8	73	0.0240	5/16	1-1/2
1-5/32	1.1562	7-1/4	11-7/8	74	0.0225	5/16	1-1/2
1-11/64	1.1719	7-3/8	12	75	0.0210	5/16	1-1/2
1-3/16	1.1875	7-3/8	12	76	0.0200	5/16	1-1/2
1-13/64	1.2031	7-1/2	12-1/8	77	0.0180	5/16	1-1/2
1-7/32	1.2188	7-1/2	12-1/8	78	0.0160	5/16	1-1/2
1-15/64	1.2344	7-7/8	12-1/2	79	0.0145	5/16	1-1/2
1-1/4	1.2500	7-7/8	12-1/2	80	0.0135	5/16	1-1/2
1-5/16	1.3125	8-5/8	14-1/4
1-3/8	1.3750	8-7/8	14-1/4
1-7/16	1.4375	9-1/8	14-3/4
1-1/2	1.5000	9-3/8	15
1-9/16	1.5625	9-5/8	15-1/4
1-5/8	1.6250	9-7/8	15-5/8
1-3/4	1.7500	10-1/2	16-1/4
