Phillips PH2 screwdriver bits engineered for use in corded and cordless drills. Characteristics - durable, made of high quality S2 alloy steel - resistant to deformation - drop-forged - hardness: 58-60 HRC - recommended for high frequency and heavy duty applications - manufactured in accordance with DIN 3126 - 1/4” hex profile

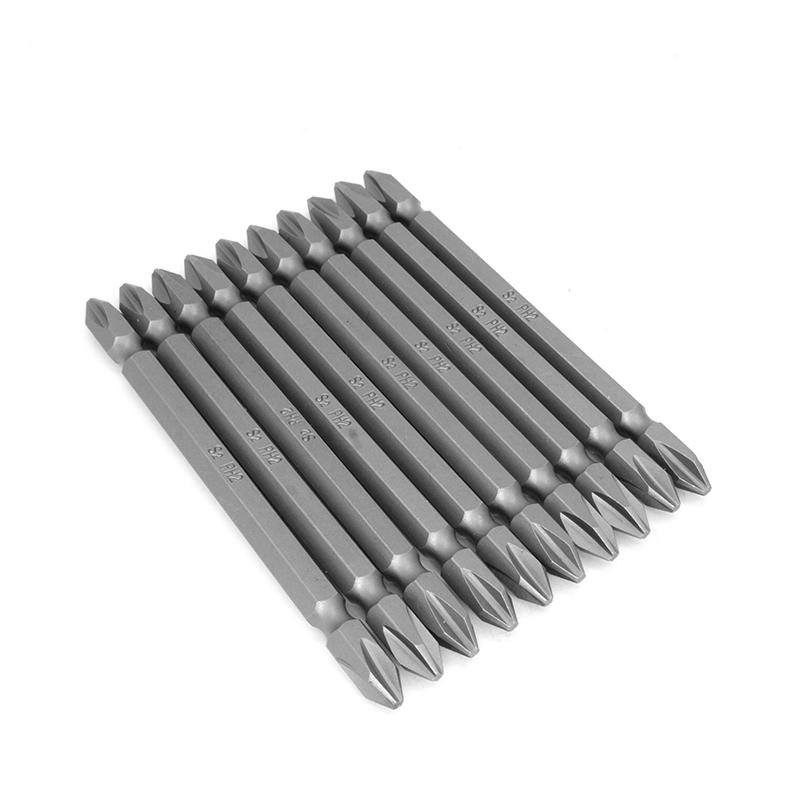

Double End Bits(双头批咀)
*S2 Steel, Cr-V, 6150 Steel, Magnetic Tip;
*Phillips, Slotted, Torx, Pozi, Hex, Spline Bit;
*Sandblast, Plating, Chrome, Nickle, Black
Mode No. |
D.(mm) |
L.(mm) |
PH22-50~200 |
PH2 |
50~200 |
PH11-50~200 |
PH1 |
50~200 |
PH33-50~200 |
PH3 |
50~200 |
PZ22-50~200 |
PZ2 |
50~200 |
PZ11-50~200 |
PZ1 |
50~200 |
PZ33-50~200 |
PZ3 |
50~200 |
SL66-50~200 |
SL6 |
50~200 |

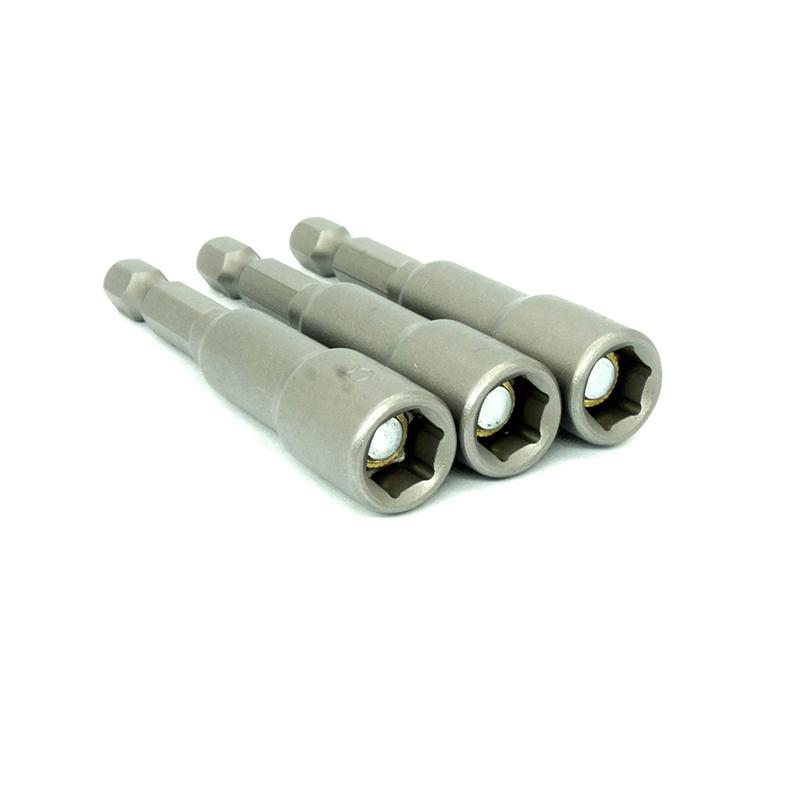

Magnetic Nut Setter (磁性套筒)
*1/4” hex shank;
*Precision formed for consistent dimensions;
*Popular in the pre-engineered building industry;
*Manufactured from the best materials available to ensure maximum life;
*Available in fraction and metric;
*For use with Hex Head Screws.
Mode No. |
D.(mm) |
L.(mm) |
L1(mm) |
M6 |
M6-42 |
M6-48 |
M6-65 |
M7 |
M7-42 |
M7-48 |
M7-65 |
M8 |
M8-42 |
M8-48 |
M8-65 |
M9 |
M9-42 |
M9-48 |
M9-65 |
M10 |
M10-42 |
M10-48 |
M10-65 |
M11 |
M11-42 |
M11-48 |
M11-65 |
M12 |
M12-42 |
M12-48 |
M12-65 |
M13 |
M13-42 |
M13-48 |
M13-65 |
M14 |
M14-42 |
M14-48 |
M14-65 |
Phillips Bits
Slotted Bits
Square Bits
Hex Bits
Torx Bits
Pozi Bits
*S2 Steel, Cr-V, 6150 Steel, Magnetic Tip;
*Phillips, Slotted, Torx, Pozi, Hex, Spline Bit;
*Sandblast, Plating, Chrome, Nickle, Black
Mode No. |
D.(mm) |
L.(mm) |
SQ1-3 |
SQ1-3 |
25L |
T10-T40 |
T10-T40 |
25L |
H3-H6 |
H3-H6 |
25L |
PZ0-PZ3 |
PZ0-PZ3 |
25L |
PHO-PH3 |
PHO-PH3 |
25L |
SL4-SL7 |
SL4-SL7 |
25L |
Impact Driver Bits
*S2 Steel, Cr-V, 6150 Steel, Magnetic Tip;
*Phillips, Slotted, Torx, Pozi, Hex, Spline Bit;
*Sandblast, Plating, Chrome, Nickle, Black
Mode No. |
D.(mm) |
L.(mm) |
S8-80-PH2 |
PH2 |
80 |
Φ8-45-PH3-S |
PH3 |
45 |
Φ8-36-PH3-R |
PH3 |
36 |
Magnetic Holder
*Available with or without Magnet;
*Various Body diameters;
*Accommodates all 1/4”.Hex insert bits;
*Can be used with socket wrench or socket adapter;
*Designed for insert bits only.
Mode No. |
D.(mm) |
L.(mm) |
60UBH |
6.35 |
60 |
75UBH |
6.35 |
75 |
100UBH |
6.35 |
100 |
